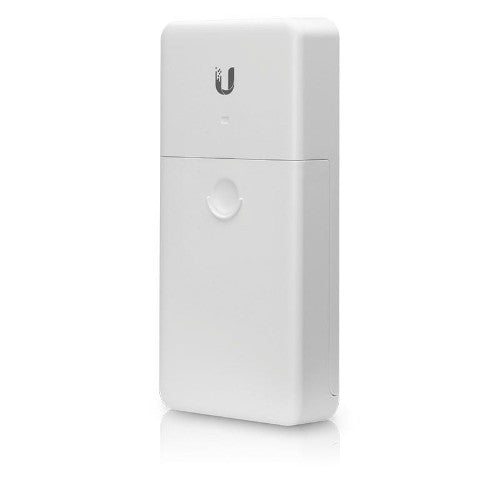

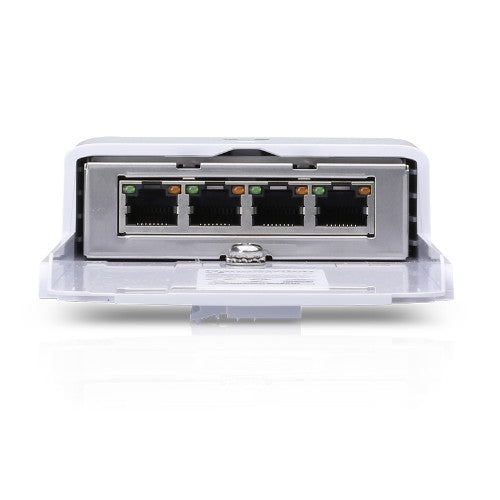

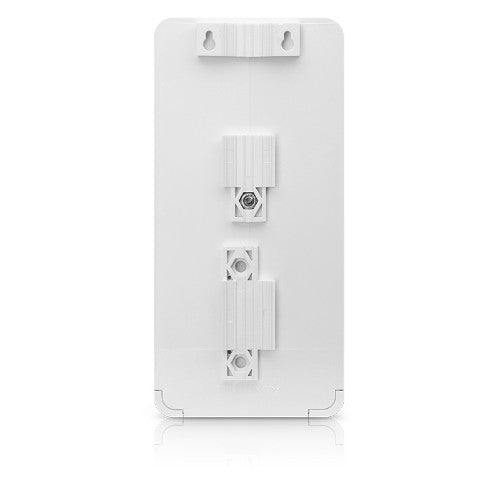

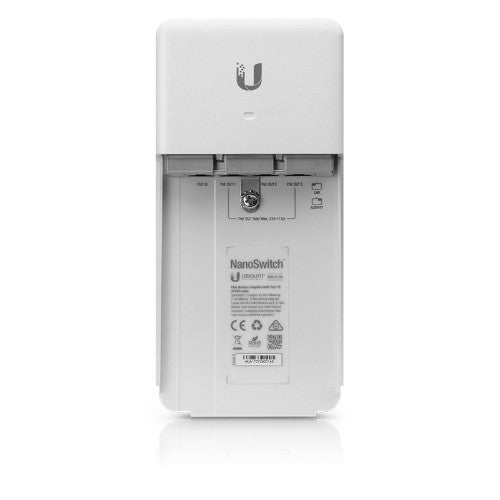

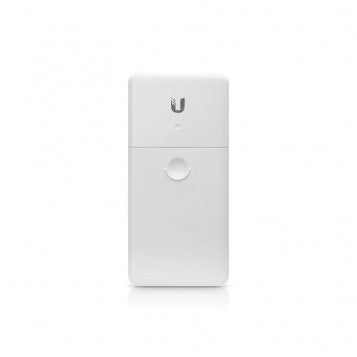

NanoSwitch, RTL8367N-VB, (4) 10/100/1000 Mbps Ethernet RJ45
Description
The NanoSwitch is an outdoor, 4-port Gigabit switch with PoE pass-through. It is powered by 24V Passive PoE and provides up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.
Specifications
| Technical details |
|---|
| Product colour |
White |
| Rack mounting |
No |
| Built-in processor |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| 10G support |
No |
| Data transmission |
|---|
| Switching capacity |
4 Gbit/s |
| Design |
|---|
| Product colour |
White |
| Rack mounting |
No |
| Performance |
|---|
| Built-in processor |
Yes |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Power supply included |
No |
| Power consumption (typical) |
1.5 W |
| DC input voltage |
24 V |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
24 W |
| Total Power over Ethernet (PoE) budget |
36 W |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
93.5 mm |
| Depth |
196.4 mm |
| Height |
32.4 mm |
| Weight |
269 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
