Description

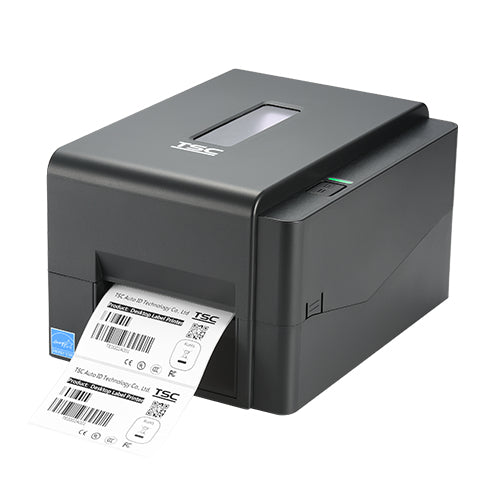

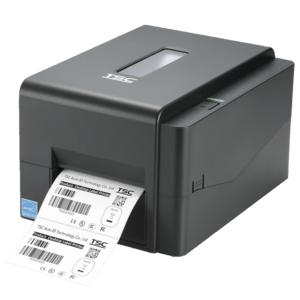

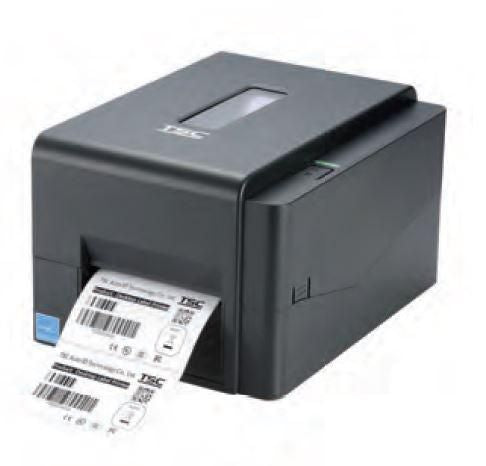

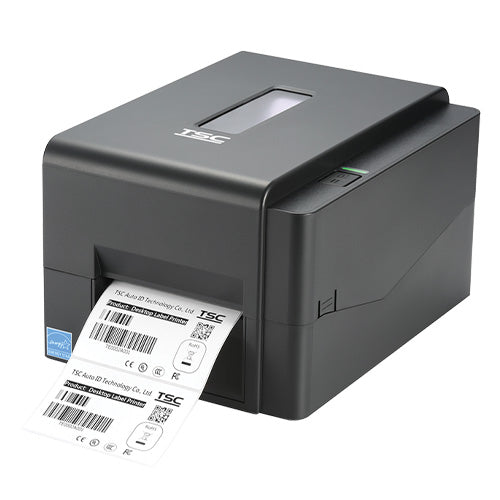

TE Series 4-Inch Performance Desktop Printers
The first two models available in the TE series are the flagship TE200 and TE210 which offer the industry standard 8 dots per mm (203 dpi) print resolution at 6-inches per second, and the 12 dots per mm (300 dpi) TE300 and TE310 for use with printing small fonts, barcodes, or graphics. The TE Series offers customers a great combination of price and performance, that features a fast 400 MHz processor, TE200 and TE300 feature 16 MB of DRAM and 8 MB of Flash storage memory, while TE210 and TE310 feature 64 MB of SDRAM and 128 MB of Flash memory, and a standard two-year warranty.
Innovation and Value
The new TE Series of 4-inch wide desktop-class thermal label printers were designed and built to deliver high-quality performance at a competitive price point. The TE200 modular thermal transfer print mechanism protected by an outer ABS shell is designed to withstand tough environments. These affordable, hardworking printers will print high-quality labels all day long, producing thousands of clear, crisp barcode and identification labels per day.
Innovations include energy-saving Energy Star 2.0 rating matched with an easy to load print mechanism. The printer will take both 0.5-inch core 72-meter to 110-meter, or 1-inch core 300-meter thermal transfer ribbons allowing customers to use whichever supply of ribbons they have available. The TE200 offers multiple printer language emulations right out of the box, and a powerful scalable font engine that makes it easy to replace nearly any existing label printers.

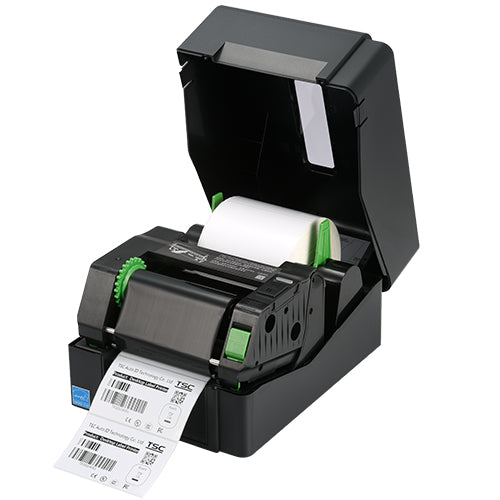

Both the printhead and platen roller can be easily changed without using any tools. The printer features both Gap and Black Mark sensing to accurate label registration. And the media cabinet can handle industry standard 5-inch OD labels on 1-inch or 1.5-inch cores. The powerful hybrid electric motor is strong enough to handle larger 8-inch OD label rolls on its optional external label unwinder.
The TE200 Series innovative design offers our resellers new opportunities to satisfy unique market applications. The print mechanism which normally resides within the printer may be purchased separately for those looking to integrate custom label printing capability into their own manufactured designs. Applications for this unique print mechanism can include use with kiosk applications, small label applicators, two color on-demand printing, and two-sided printing.
The TE Series offers a low initial price, uses the most cost-effective supplies available, and is built to last. These virtually trouble-free units feature a standard two-year warranty. Once you plug it in, you won't have to worry about it.
The TE Series can print a wide variety of labels ranging from shipping labels to compliance and general purpose product identification labels and tags. Other applications include automobile service shops, walk-in shipping and mail centers, and inventory control for stock rooms.
Key Features
- Work in Progress
- Item Labels
- Instruction Labels
- Agency Labels
- Patient Identification
- Pharmacy
- Specimen Identification
- Shipping Labels
- Receiving Labels
- File folder labels
- Product identification
- Price Tags
- Shelf Labels
- Jewelry Tags
Description
The TE Series provides customers throughout the world with a competitive, durable, entry-level desktop printer that is both versatile and easy-to-use. The series now offers four models.The first two models available in the TE series are the flagship TE200 and TE210 which offer the industry standard 8 dots per mm (203 dpi) print resolution at 6-inches per second, and the 12 dots per mm (300 dpi) TE300 and TE310 for use with printing small fonts, barcodes, or graphics. The TE Series offers customers a great combination of price and performance, that features a fast 400 MHz processor, TE200 and TE300 feature 16 MB of DRAM and 8 MB of Flash storage memory, while TE210 and TE310 feature 64 MB of SDRAM and 128 MB of Flash memory, and a standard two-year warranty.
Innovation and Value
The new TE Series of 4-inch wide desktop-class thermal label printers were designed and built to deliver high-quality performance at a competitive price point. The TE200 modular thermal transfer print mechanism protected by an outer ABS shell is designed to withstand tough environments. These affordable, hardworking printers will print high-quality labels all day long, producing thousands of clear, crisp barcode and identification labels per day.
Innovations include energy-saving Energy Star 2.0 rating matched with an easy to load print mechanism. The printer will take both 0.5-inch core 72-meter to 110-meter, or 1-inch core 300-meter thermal transfer ribbons allowing customers to use whichever supply of ribbons they have available. The TE200 offers multiple printer language emulations right out of the box, and a powerful scalable font engine that makes it easy to replace nearly any existing label printers.
Both the printhead and platen roller can be easily changed without using any tools. The printer features both Gap and Black Mark sensing to accurate label registration. And the media cabinet can handle industry standard 5-inch OD labels on 1-inch or 1.5-inch cores. The powerful hybrid electric motor is strong enough to handle larger 8-inch OD label rolls on its optional external label unwinder.
The TE200 Series innovative design offers our resellers new opportunities to satisfy unique market applications. The print mechanism which normally resides within the printer may be purchased separately for those looking to integrate custom label printing capability into their own manufactured designs. Applications for this unique print mechanism can include use with kiosk applications, small label applicators, two color on-demand printing, and two-sided printing.
The TE Series offers a low initial price, uses the most cost-effective supplies available, and is built to last. These virtually trouble-free units feature a standard two-year warranty. Once you plug it in, you won't have to worry about it.
The TE Series can print a wide variety of labels ranging from shipping labels to compliance and general purpose product identification labels and tags. Other applications include automobile service shops, walk-in shipping and mail centers, and inventory control for stock rooms.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.6 cm |
| Printing | |
| Print speed | 127 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.6 cm |
| Print technology | Direct thermal / Thermal transfer |
| Display | |
| Display | No |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Paper handling | |
| Supported paper width | 20 - 112 mm |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Core diameter | 3.81 cm |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Connectivity technology | Wired |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | 1D, 2D, Code 11, Code 128 (A/B/C), Code 39, EAN128, EAN13, EAN8, GS1 DataBar, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Number of fonts | 8 |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Page description languages | DPL, EPL, ZPL, ZPL II |
| Design | |
| Display | No |
| Product colour | Black |
| Built-in display | No |
| Power | |
| AC adapter output voltage | 24 V |
| AC adapter output current | 2.5 A |
| Power consumption (printing) | 60 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Product colour | Black |
| Built-in barcodes | 1D, 2D, Code 11, Code 128 (A/B/C), Code 39, EAN128, EAN13, EAN8, GS1 DataBar, MaxiCode, PDF417, QR Code, UPC-A, UPC-E |
| Number of fonts | 8 |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Processor | |
| Built-in processor | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 25 - 85% |
| Weight & dimensions | |
| Width | 204 mm |
| Depth | 280 mm |
| Height | 164 mm |
| Weight | 2.5 kg |
| Packaging content | |
| Cables included | AC, USB |
