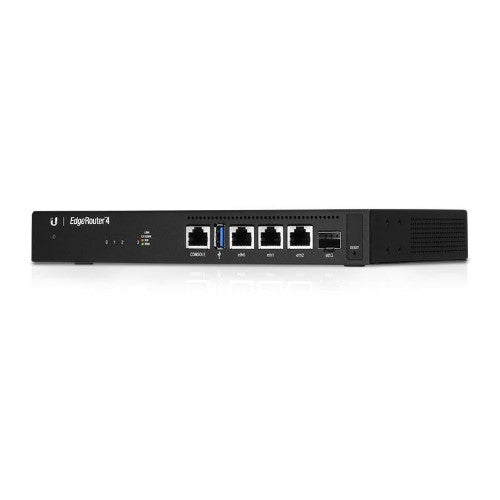

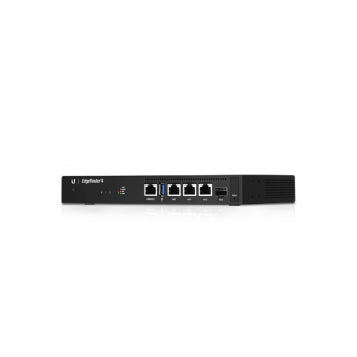

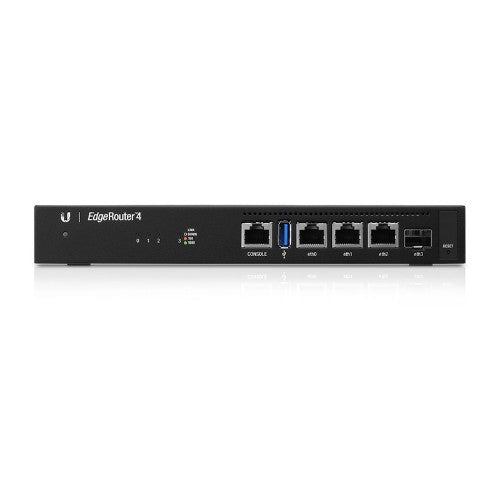

EdgeRouter 4, 4-Core 1GHz MIPS64, 1GB DDR3, 4GB eMMC, 8MB SPI NOR, 13W, (3) 10/100/1000 Ethernet Router Ports, (1) 1Gbps SFP Port, (1) RJ45 Serial
Key Features
- New Design
- (3) 10/100/1000 Mbps Ethernet Ports and (1) SFP Port
- 4-Core 1GHz MIPS64 Processor
- Internal PSU
- Fanless

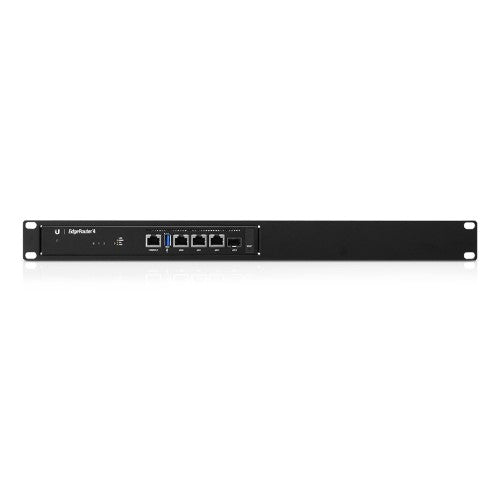

- Desk, Wall, and RackMount options
Description
The all-new EdgeRouter 4 brings “high-performance at disruptive pricing” to a new level. With a 50% increase in performance compared to the EdgeRouter Pro, the EdgeRouter 4 delivers the performance your network needs. Paired with our feature-rich EdgeOS makes this a versatile tool in both Carrier-Grade and Enterprise networks.
Specifications
| Ethernet LAN features |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN |
Yes |
| Memory |
|---|
| Internal memory |
1024 MB |
| Performance |
|---|
| Processor cores |
4 |
| Storage media |
eMMC |
| Internal storage capacity |
4 GB |
| Internal memory type |
DRAM |
| Processor architecture |
MIPS64 |
| Internal memory |
1024 MB |
| Built-in processor |
Yes |
| Processor frequency |
1000 MHz |
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN |
Yes |
| Forwarding rate |
4000 Mpps |
| Static route |
Yes |
| VLAN support |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Management features |
|---|
| Web-based management |
Yes |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Serial ports quantity |
1 |
| USB ports quantity |
1 |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN (RJ-45) ports |
3 |
| Protocols |
|---|
| Management protocols |
UNMS, CLI, SNMP, NetFlow, LLDP, NTP |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Technical details |
|---|
| Rack mounting |
Yes |
| Built-in processor |
Yes |
| Processor frequency |
1000 MHz |
| LED indicators |
Activity, Link, Speed |
| Product colour |
Black |
| Harmonized System (HS) code |
85176990 |
| Security |
|---|
| Firewall |
Yes |
| Security algorithms |
IPSEC, SNMP, SSH |
| System event log |
Yes |
| VPN support |
IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client |
| Features |
|---|
| Processor cores |
4 |
| Storage media |
eMMC |
| Internal storage capacity |
4 GB |
| Internal memory type |
DRAM |
| Processor architecture |
MIPS64 |
| Internal memory |
1024 MB |
| Built-in processor |
Yes |
| Processor frequency |
1000 MHz |
| Certification |
CE, FCC, IC |
| Design |
|---|
| Rack mounting |
Yes |
| LED indicators |
Activity, Link, Speed |
| Product colour |
Black |
| Rack capacity |
1U |
| Power |
|---|
| Power source type |
AC |
| AC input voltage |
110 - 240 V |
| Power consumption (typical) |
13 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
229 mm |
| Depth |
136.5 mm |
| Height |
31.1 mm |
| Weight |
795 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
