Description
USB 3.1, 1 x 10/100/1000 LAN, IPv4/IPv6, 25.4 g
The USB-0402 is USB 1.0/2.0, 3.0, and 3.1 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
Description

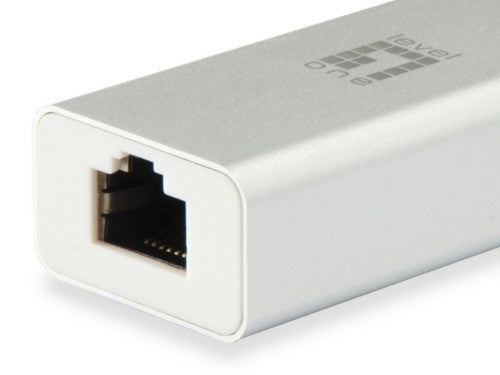

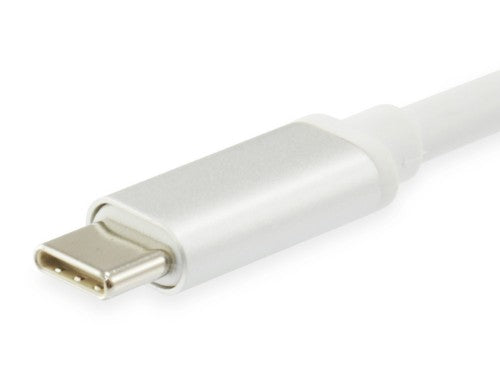

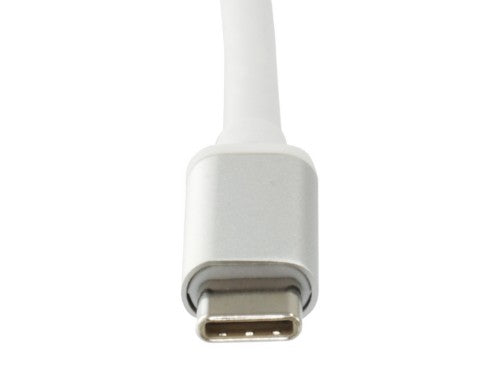

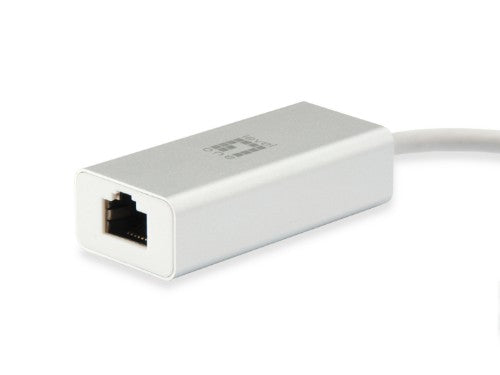

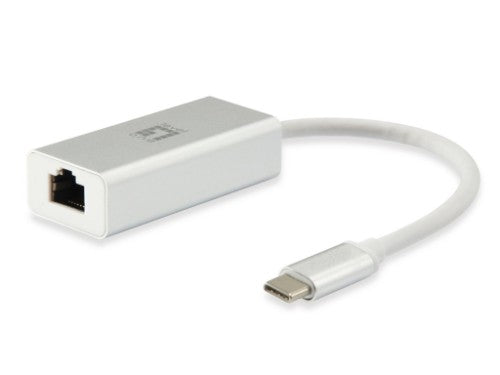

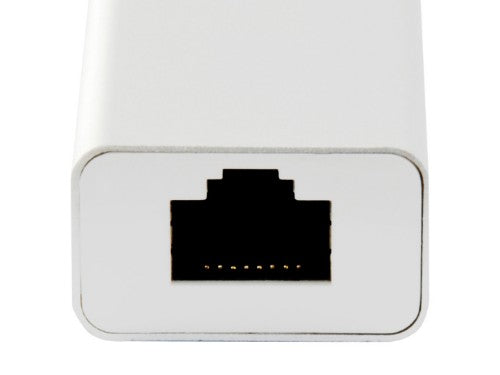

The LevelOne USB-0402 is a Gigabit USB type C Network Adapter that enables desktop and notebook computers with high-speed Gigabit network connectivity via the USB port. This is an ideal solution for MacBook or other Windows computers that may have wireless built-in but don’t come with an Ethernet port when physical connection to a network is needed.The USB-0402 is USB 1.0/2.0, 3.0, and 3.1 compliant. It also follows the Ethernet standards set by the IEEE 802.3/3u and 802.3ab, allowing you to take advantage of Gigabit Ethernet speeds of up to 1000Mbps. This provides a strong backbone for any high-speed broadband connection to the internet as well as fast speeds for the Local Area Network file transfers.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | No |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Host interface | USB Type-C |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Product colour | Silver, White |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Country of origin | China |
| Compliance certificates | RoHS |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Jumbo frames | 9000 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Supported network protocols | IPv4/IPv6 |
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Maximum data transfer rate | 1000 Mbit/s |
| Flow control support | Yes |
| Design | |
| Product colour | Silver, White |
| Certification | CE |
| Internal | No |
| Country of origin | China |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Power | |
| Output voltage | 5 V |
| Input current | 3 A |
| Power consumption (typical) | 2 W |
| USB powered | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | 10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width | 28.5 mm |
| Depth | 17.5 mm |
| Height | 217 mm |
| Weight | 26 g |
| Package width | 90 mm |
| Package depth | 26 mm |
| Package height | 212 mm |
| Package weight | 33 g |
| Protocols | |
| Supported network protocols | IPv4/IPv6 |
| Packaging data | |
| Package type | Box |
| Package width | 90 mm |
| Package depth | 26 mm |
| Package height | 212 mm |
| Package weight | 33 g |
| Quick installation guide | Yes |
| Packaging content | |
| Quick installation guide | Yes |
| Package type | Box |
| Performance | |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Certificates | |
| Certification | CE |
| Logistics data | |
| Master (outer) case width | 390 mm |
| Master (outer) case length | 280 mm |
| Master (outer) case height | 540 mm |
| Master (outer) case gross weight | 7.7 kg |
| Products per master (outer) case | 120 pc(s) |
| Other features | |
| Jumbo frames | 9000 |
| Flow control support | Yes |
| Country of origin | China |
