Description
UF-GP-C+, SC/UPC,
Description

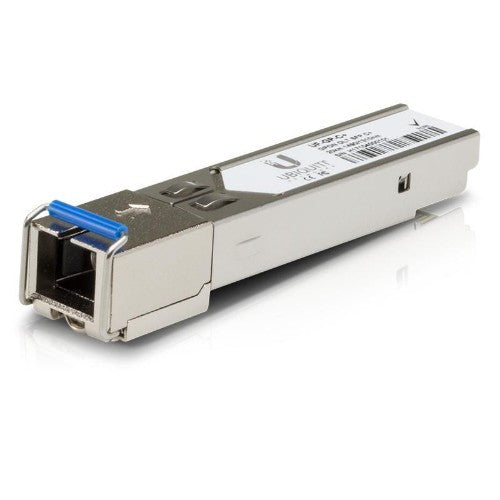

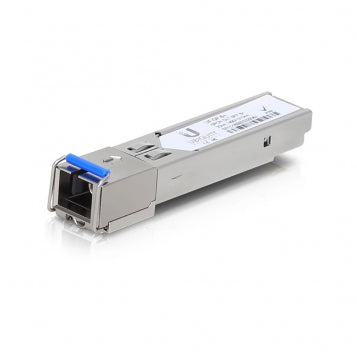

The UFiber OLT’s GPON SFP ports are designed for use with the UF-GP-C+ SFP module. These additional modules can be purchased in packs of 20.Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Tx wavelength (max) | 1490 nm |
| Rx wavelength (max) | 1310 nm |
| Fiber optic connector | SC |
| Wavelength | 1490 nm |
| Fiber ports quantity | 1 |
| Tx power (min) | 3 dBmW |
| Tx power (max) | 7 dBmW |
| Rx power (min) | -12 dBmW |
| Rx power (max) | -30 dBmW |
| Maximum data transfer rate | 2500 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Product colour | Metallic |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Metallic |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 2500 Mbit/s |
| Interface type | SFP |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Wavelength | 1490 nm |
| Tx power (min) | 3 dBmW |
| Tx power (max) | 7 dBmW |
| Rx power (min) | -12 dBmW |
| Rx power (max) | -30 dBmW |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
