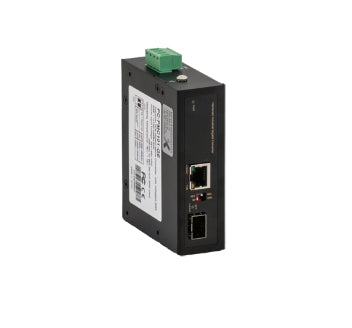

Industrial media converter 10/100/1000BaseTX to SFP with PoE+
Key Features
- DIN-rail and wall mounting
- Copper port: 10/100/1000, RJ45
- Copper port with PoE up to PoE+ 30W
- F.O. port: 100/1000SFP
- Power: 48-56VDC
- Wide temperature range
- Without SFP
- Without power supply
- PoE and PoE+ to 30W
Description
This industrial media converter is especially developed for applications with a high data load such as video over IP or streaming. Its compact design, wide temperature range and high flexibility make this product ideal for the us in remote locations. The media converter disposes of a optical SFP-port and a copper port for 10/100/1000TX which supports PoE 802.3af/at up to 30W. The media converter is delivered with a clamp for DIN-rail mounting and a clip for wall mounting.
Specifications
| Network |
|---|
| Fiber optic connector |
SFP |
| Flow control support |
Yes |
| Auto-negotiation |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Converter input interface |
10Base-T, 100Base-TX, 1000Base-T |
| Networking standards |
IEEE 802.11e, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Duplex system |
Full, Half |
| Auto MDI/MDI-X |
Yes |
| Maximum data transfer rate |
1000 Mbit/s |
| Technical details |
|---|
| Internal |
No |
| Performance |
|---|
| Flow control support |
Yes |
| Auto-negotiation |
Yes |
| Ports & interfaces |
|---|
| Power over Ethernet plus (PoE+) ports quantity |
1 |
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber ports quantity |
1 |
| Fiber optic connector |
SFP |
| Indication |
|---|
| LED indicators |
Yes |
| Design |
|---|
| DIN rail mounting |
Yes |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
EN55022/24
EN50155
EN50121-3-2
EN50121-4
EN55011
EN60950-1
EN50155 / EN60068-2-6
EN50155 / EN60068-2-27
EN50155 / EN600-2-32
FCC Class A, CE |
| Internal |
No |
| Power |
|---|
| Power consumption (max) |
4 W |
| Power over Ethernet (PoE) |
Yes |
| Input voltage |
48 - 56 V |
| External power adapter |
Yes |
| Colour |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
36 mm |
| Depth |
82 mm |
| Height |
104 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 75 °C |
| Packaging content |
|---|
| AC adapter included |
No |
| Certificates |
|---|
| Certification |
EN55022/24
EN50155
EN50121-3-2
EN50121-4
EN55011
EN60950-1
EN50155 / EN60068-2-6
EN50155 / EN60068-2-27
EN50155 / EN600-2-32
FCC Class A, CE |
