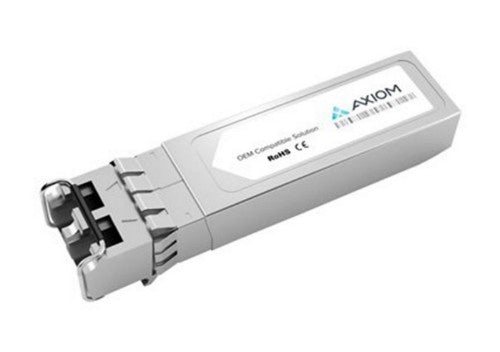

25GBASE-SR SFP Module for 25-Gigabit Ethernet Deployments, SFP28 Form Factor, 5-Year Standard Warranty (SFP-25G-SR-S=)
Key Features
- LINK LENGTH: Supports a link length of 70/100 m on OM3/4 multimode fibre (this module requires RS-FEC on the host ports)
- COMPATIBILITY: Interoperable with other IEEE-compliant 25G interfaces where applicable
- RELIABILITY: Certified and tested on Cisco SFP28 ports for superior performance, quality and reliability
- PERFORMANCE: SFP receiver/transceiver module is high-speed connectivity compliant to IEEE 802.3by and IEEE 802.3cc
- PEACE OF MIND: 5-year standard replacement warranty
Description
The Cisco 25GBASE-SR-S SFP Module delivers a variety of high-density and low-power 25-Gigabit Ethernet connectivity options for data centre and high-performance computing network applications. Based on an SFP28 form factor, this SFP module is interoperable with other IEEE-compliant 25G interfaces where applicable and is high-speed connectivity compliant to IEEE 802.3by and IEEE 802.3cc.
Specifications
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
25000 Mbit/s |
| Interface type |
SFP28 |
| Technical details |
|---|
| Package width |
143 mm |
| Package height |
44.5 mm |
| Maximum transfer distance |
100 m |
| Wavelength |
850 nm |
| Tx power (min) |
-8.4 dBmW |
| Tx power (max) |
2.4 dBmW |
| Rx power (min) |
-10.3 dBmW |
| Rx power (max) |
2.4 dBmW |
| Performance |
|---|
| Country of origin |
China |
| SFP transceiver type |
Fiber optic |
| Maximum transfer distance |
100 m |
| Wavelength |
850 nm |
| Tx power (min) |
-8.4 dBmW |
| Tx power (max) |
2.4 dBmW |
| Rx power (min) |
-10.3 dBmW |
| Rx power (max) |
2.4 dBmW |
| Maximum data transfer rate |
25000 Mbit/s |
| Interface type |
SFP28 |
| Multi-mode fiber (MMF) supported |
Yes |
| Features |
|---|
| Country of origin |
China |
| Power |
|---|
| Power consumption (typical) |
1.2 W |
| Packaging data |
|---|
| Package depth |
158.8 mm |
| Package width |
143 mm |
| Package height |
44.5 mm |
| Package weight |
90.7 g |
| Weight & dimensions |
|---|
| Package depth |
158.8 mm |
| Package width |
143 mm |
| Package height |
44.5 mm |
| Package weight |
90.7 g |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
