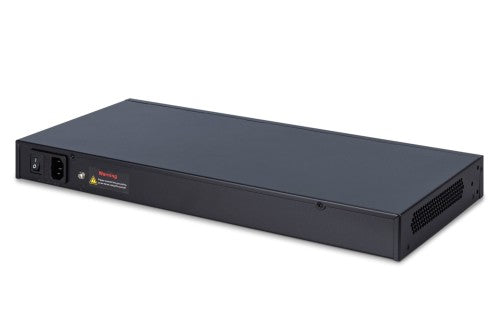

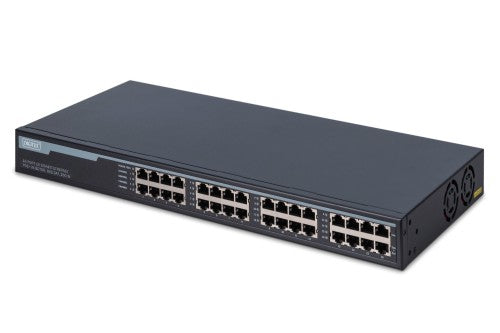

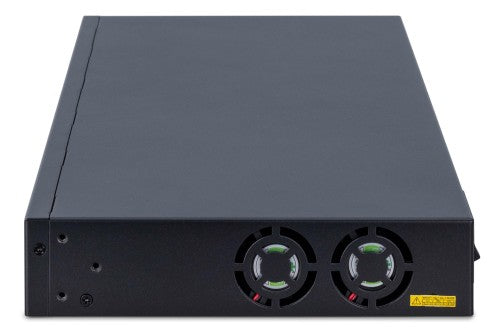

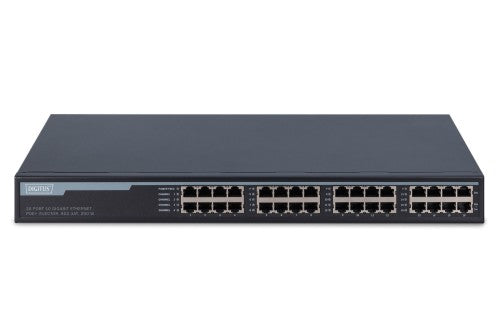

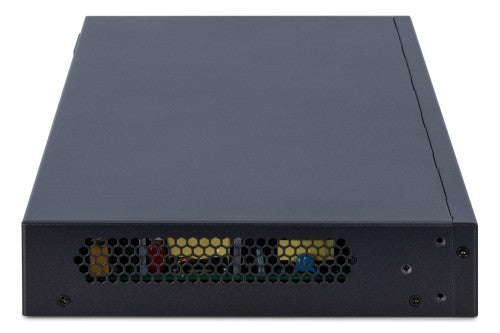

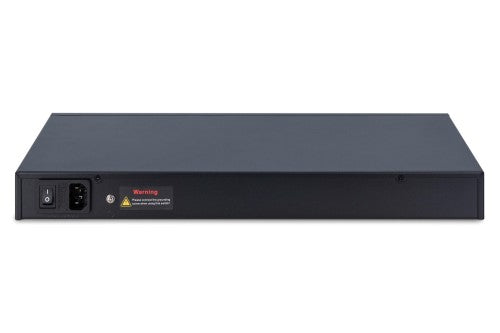

Digitus 16-port 10G Ethernet PoE+ injector, 802.3at, 250 W

10G Ethernet PoE+ Injector Hub, 802.3at 16-port, Power Pins:3/6(+), 1/2(-), 250W

Key Features

• 32 x 10/100/1000Mbps 2.5G /10G (16 x input data, 16 x output data+PoE)
• Compatible with the IEEE802.3af and IEEE802.3at standards
• PoE power supply via PIN 1,2(V-) and PIN 3,6(V+)
• Maximum total output of 250 watts
• Compatible with the standards IEEE802.3, IEEE802.3u, IEEE802.3ab
• Automatic cable detection - Auto-MDI/MDI-X function
• Auto-detection of full and half-duplex
• Power supply: 100 - 240V AC 50/60Hz
• Operating temperature range: 0 °C to 40 °C
• Storage temperature: -20°C - 70°C
• Dimensions (mm): 440(L) x 200(W) x 45(H)
• MTBF: 100,000 hours
• Power consumption: 15W

Description

Minimization of cabling effort for PoE-capable devices

- 16 10G ports with PoE+ support
- 250 watts of power with up to 30 watts per port
- Compatible with the IEEE802.3at standards
- Automatic overvoltage protection
- Supports bandwidths up to 10Gbps

The DIGITUS® DN-95116 is a 16 port 10G PoE+ mid-span hub (PoE injector). It offers 16 input ports for data and 16 output ports that provide data and PoE. Each PoE port supports connected devices according to the PoE standard IEEE802.3af and IEEE802.3at with 15.4 watts and 30 watts respectively, such as PoE access points, PoE IP telephones or PoE IP cameras. The switch provides a maximum budget of 250 watts for all ports and a maximum budget of 30 watts per port.

Specifications

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	AC-in jack
Network
Networking standards	IEEE 802.3af
Full duplex	Yes
Auto MDI/MDI-X	Yes
10G support	No
Design
On/off switch	Yes
Form factor	1U
Product colour	Grey
LED indicators	Power
Rack mounting	Yes
Country of origin	China
Performance
Plug and Play	Yes
Mean time between failures (MTBF)	100000 h
Harmonized System (HS) code	85176990
Power
Power consumption (max)	250 W
Power protection features	Overload, Short circuit
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	3 A
Surge protection	Yes
Power connector	AC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage range	1.2 - 3.6 V
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	250 W
Power over Ethernet (PoE)	Yes
Power protection features	Overload, Short circuit
Other features
Ethernet interface type	Gigabit Ethernet
Country of origin	China
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	200 mm
Depth	440 mm
Height	45 mm
Weight	2.8 kg
Packaging content
Quick start guide	Yes
Cables included	AC
Packaging data
Package type	Box
Package volume	14000 cm³
Package width	280 mm
Package depth	500 mm
Package height	100 mm
Package weight	4.17 kg
Quick start guide	Yes
Cables included	AC
Technical details
Form factor	1U
Product colour	Grey
Mean time between failures (MTBF)	100000 h
Rack mounting	Yes
Indication
LED indicators	Power
Logistics data
Country of origin	China
Harmonized System (HS) code	85176990
UK Trade Tariff code	85176200
