Description
4K HDMI 2.0 Extender Set, UHD 4K/60 Hz 70 m via CAT6 or higher
- Extends 4K/60Hz video content up to 70 m
- Supports Ultra HD (60Hz), 4096 x 2160p resolution
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Integrated IR interface - simple control of the input source with a remote control
- Supports CAT 6 or higher network cables
- Supports HDCP 2.2

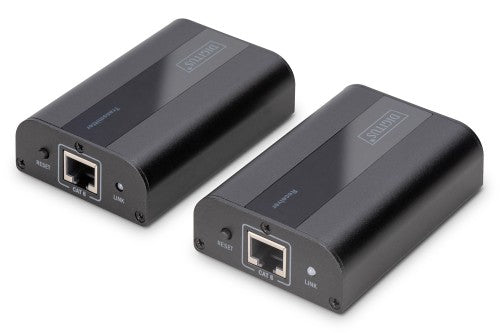

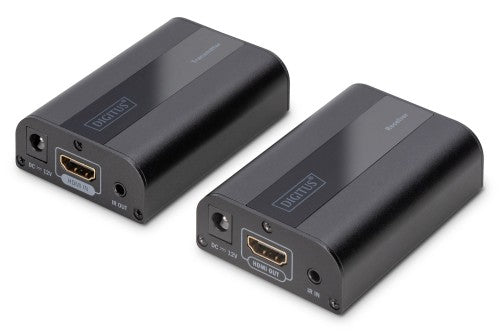

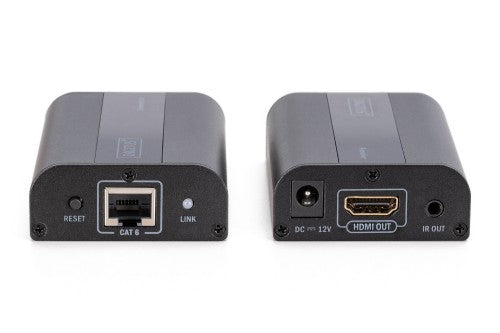

The Digitus 4K Extender Set offers an extender solution for the highest demands - both for high-resolution graphics display and for absolutely smooth video playback. It transmits digital 4K/60Hz video and audio signals over a maximum length of up to 70 m. CAT 6 or higher network cables are supported. It consists of a transmitter and receiver unit. Also included are two infrared units (transmitter, receiver) via which the remote control of the connected input source can be used.
Key Features
- Extends 4K/60Hz video content up to 70m
- Supports Ultra HD (60Hz), 4096 x 2160p resolution
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Integrated IR interface - simple control of the input source with a remote control
- Supports CAT 6, CAT 6A, CAT 7 network cables
- Supports HDCP 2.2
- Provides simple and fast distribution for HDMI video signals - place your screens wherever you want
- Resolutions: 4K (60Hz), 4K (30Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
- LED status display
- Max. Transfer rate: 18 Gbps
- Color depth: 12 bit
- Supports compressed audio signals such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
- Supports uncompressed audio signals such as LPCM
- High-quality aluminum housing
- Compact size, easy handling and installation
- Power supply unit: DC 12V/1A
- Compression: Uncompressed
- Dimensions (1x unit): L 7.7 x W 5.6 x H 2.7 cm
- Color: Black
Description
Extends the maximum length for HDMI cables to up to 70 m using only a single network cable between a transmitter and a receiver unit- Extends 4K/60Hz video content up to 70 m
- Supports Ultra HD (60Hz), 4096 x 2160p resolution
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Integrated IR interface - simple control of the input source with a remote control
- Supports CAT 6 or higher network cables
- Supports HDCP 2.2
The Digitus 4K Extender Set offers an extender solution for the highest demands - both for high-resolution graphics display and for absolutely smooth video playback. It transmits digital 4K/60Hz video and audio signals over a maximum length of up to 70 m. CAT 6 or higher network cables are supported. It consists of a transmitter and receiver unit. Also included are two infrared units (transmitter, receiver) via which the remote control of the connected input source can be used.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 70 m |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum digital resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Country of origin | China |
| LED indicators | Yes |
| Transmitter | |
| Transmitter video port type | HDMI |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| Power | |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Weight & dimensions | |
| Transmitter width | 56 cm |
| Transmitter depth | 77.5 cm |
| Transmitter height | 27 cm |
| Transmitter weight | 160 g |
| Package width | 150 mm |
| Package depth | 200 mm |
| Package weight | 575 g |
| Packaging data | |
| Package width | 150 mm |
| Package depth | 200 mm |
| Package weight | 575 g |
| AC adapter included | Yes |
| Manual | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Maximum resolution | 4096 x 2160 pixels |
| Package volume | 2400 cm³ |
| Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85176200 |
| Harmonized System (HS) code | 84733080 |
