Description
Aluminium PDU, Rackmountable, frequency filter 16A, 3600W, 230VAC 50/60Hz, 7x safety, 2m
- Perfect power distribution for your network and IT rack

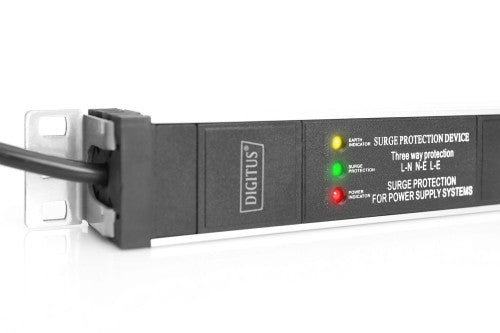

- Integrated mains filter and overvoltage module protects the connected loads from interference from the mains

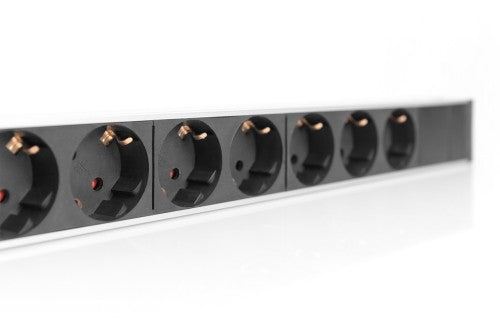

- Sockets are rotated by 45° for optimum space management and easy access
The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology, laboratories and the home. The power strip can be mounted vertically in the cabinet. An integrated mains filter and overvoltage protection protects the connected consumers from interference from the mains. Depending on the cabinet type, it is possible to mount the socket strip with the taps pointing to the right or left.
Key Features
- Integrated mains filter
- Integrated overvoltage protection : Nominal discharge current (In) - 10 kA
- Vertical rack installation
- Rotation of the cans: 45°
- Housing: Aluminum
- Plastic components made of ABS UL-94V-0

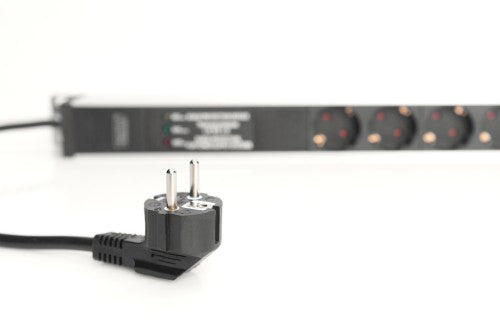

- Input: earthing contact plug CEE 7/7, 230 Vac / 16 A
- Output: appliance sockets 7 x socket outlet with earthing contact DIN 49440, max. 16 A per output
- Supply cable: H05VV-F 3G 1.5 mm² , length: 2 m
- Dimensions: 620 x 45 x 45 mm (HxWxD)
Description
Secure and professional power supply in the network / server rack area- Perfect power distribution for your network and IT rack
- Integrated mains filter and overvoltage module protects the connected loads from interference from the mains
- Sockets are rotated by 45° for optimum space management and easy access
The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology, laboratories and the home. The power strip can be mounted vertically in the cabinet. An integrated mains filter and overvoltage protection protects the connected consumers from interference from the mains. Depending on the cabinet type, it is possible to mount the socket strip with the taps pointing to the right or left.
Specifications
| Design | |
|---|---|
| Product colour | Black, Silver |
| Rack capacity | 0U |
| Housing material | Aluminium |
| Ports & interfaces | |
| AC outlets quantity | 7 AC outlet(s) |
| AC outlet types | Type F |
| Power plug | Type F |
| Features | |
| Cable length | 2 m |
| EMI/RFI noise filtering | Yes |
| Ergonomics | |
| Cable length | 2 m |
| Power | |
| Maximum power | 4000 W |
| Nominal input voltage | 250 V |
| Nominal output voltage | 230 V |
| Power protection features | Over voltage |
| Maximum current | 16 A |
| Load capacity | 3600 VA |
| AC input frequency | 50 - 60 Hz |
| Number of phases | 1 |
| Packaging data | |
| Package width | 125 mm |
| Package depth | 755 mm |
| Package volume | 6134.38 cm³ |
| Package weight | 1.45 kg |
| Weight & dimensions | |
| Package width | 125 mm |
| Package depth | 755 mm |
| Package volume | 6134.38 cm³ |
| Package weight | 1.45 kg |
| Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85444290 |
