Description

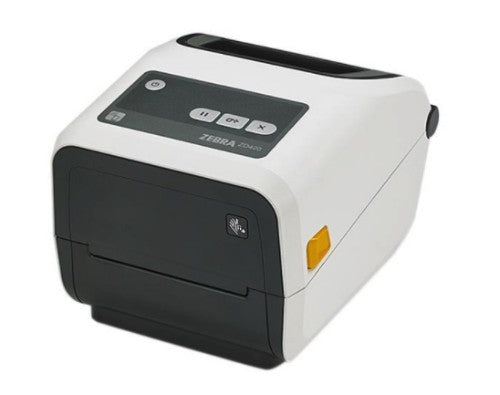

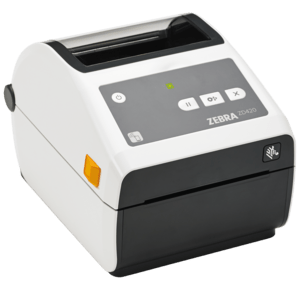

ZD420, 4" TT Healthcare Printer, 203 dpi, with BTLE, USB, USB Host, WLAN & BT
Faster, higher-quality printing keeps your business moving. You get an intuitive interface and wireless connections typically found in higher end models. Plus field-installable connectivity and media handling options allow you to purchase what you need today, yet easily add new features on site to meet tomorrow’s needs.
Description
EASE OF USE, FLEXIBLITY AND MANAGEMENT IN THERMAL TRANSFER PRINTINGFaster, higher-quality printing keeps your business moving. You get an intuitive interface and wireless connections typically found in higher end models. Plus field-installable connectivity and media handling options allow you to purchase what you need today, yet easily add new features on site to meet tomorrow’s needs.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.4 cm |
| Printing | |
| Colour | No |
| Print speed | 152 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.4 cm |
| Print technology | Thermal transfer |
| Design | |
| LED indicators | Yes |
| Housing material | Plastic |
| Product colour | White |
| Certification | IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000- 3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | No |
| Memory | |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Paper handling | |
| Media thickness | 0.08 - 0.305 mm |
| Maximum roll diameter | 12.7 cm |
| Maximum label width | 11.8 cm |
| Maximum label length | 991 m |
| Ports & interfaces | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| USB 2.0 ports quantity | 2 |
| Bluetooth version | 4.1 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet LAN | No |
| USB port | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Performance | |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Certification | IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000- 3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
| Page description languages | EPL, ZPL |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| Product colour | White |
| Maximum label width | 11.8 cm |
| Maximum label length | 991 m |
| LED indicators | Yes |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 84433210 |
| Certificates | |
| Certification | IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000- 3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 4.4 - 41 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 202 mm |
| Depth | 267 mm |
| Height | 192 mm |
| Weight | 2.4 kg |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
| Other features | |
| LED indicators | Yes |
