Description

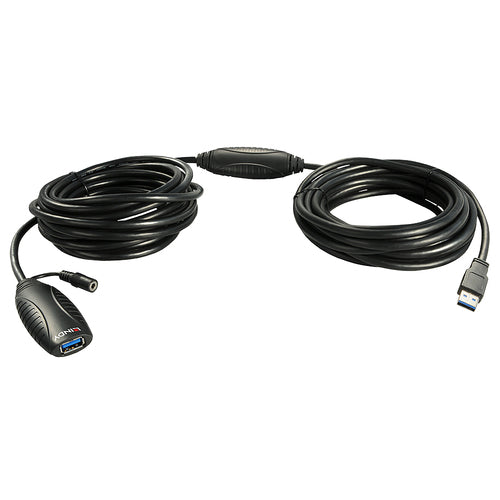

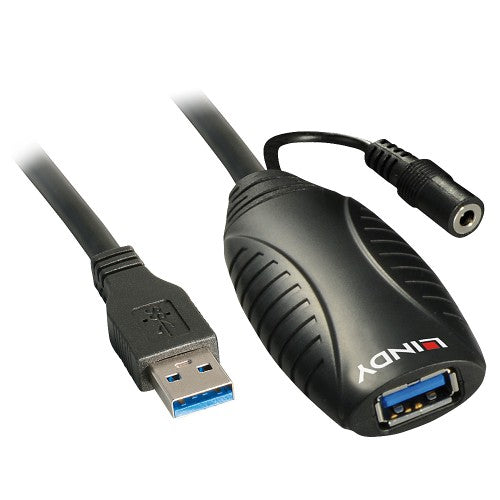

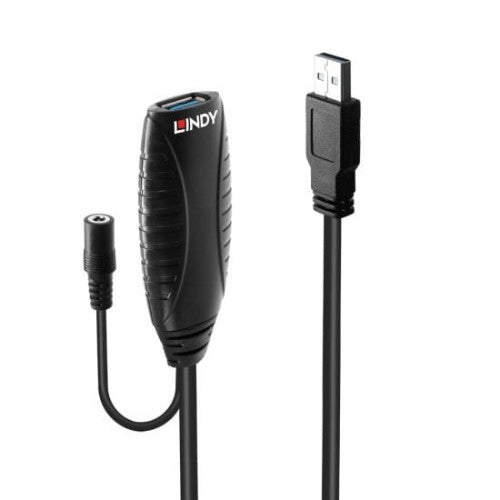

15m USB 3.0 Active Extension
With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.
The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Key Features
- 15 metre USB 3.0 Active Extension Repeater Lead
- Supports transfer rates up to 5Gbps
- For even greater distances simply connect 2 cables in series
- Plug and Play
- 2 year warranty
Description
The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 15m whilst continuing to support data transfer rates of up to 5Gbps.With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.
The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Plug and Play | Yes |
| AWG wire size | 28/28/22 |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Cable length | 15 m |
| Connector contacts plating | Nickel |
| Maximum data transfer rate | 5000 Mbit/s |
| Product colour | Black |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Conductor material | Copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Contact material | Copper |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Connector housing material | Plastic |
| Transmission medium | Twisted pair |
| Nominal attenuation | 100 MHz, -1.5 dB 1.25 GHz, -5.0 dB 2.5 GHz, -7.5 dB 7.5 GHz, -25 dB |
| Maximum data transfer rate | 5 Gbit/s |
| Cable diameter | 7 mm |
| Weight | 1.33 kg |
| Quantity per pack | 1 pc(s) |
| Power | |
| Power note | 3.5/1.35mm DC |
| Weight & dimensions | |
| Cable diameter | 7 mm |
| Cable length | 15 m |
| Weight | 1.33 kg |
| Bend radius (min) | 6 cm |
| Connector 1 dimensions (WxDxH) | 16 x 49 x 9 mm |
| Connector 2 dimensions (WxDxH) | 35 x 85 x 15 mm |
| Connector 3 dimensions (WxDxH) | 35 x 100 x 15 mm |
| Package width | 300 mm |
| Package depth | 80 mm |
| Package height | 300 mm |
| Package weight | 1.39 kg |
| Package type | Polybag |
| Packaging data | |
| Package width | 300 mm |
| Package depth | 80 mm |
| Package height | 300 mm |
| Package weight | 1.39 kg |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector contacts plating | Nickel |
| Data transmission | |
| Maximum data transfer rate | 5000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Manual | Yes |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Other features | |
| Package type | Polybag |
| Product colour | Black |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
