Description

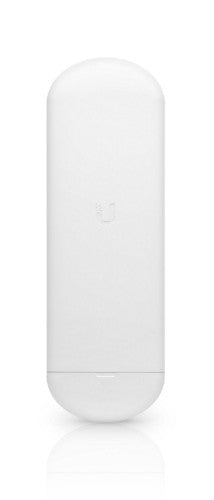

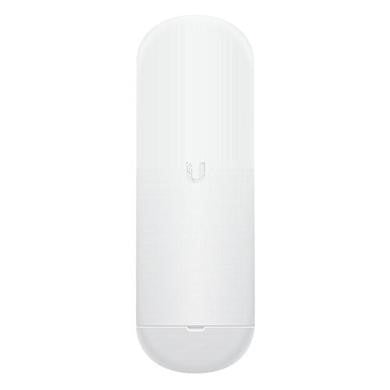

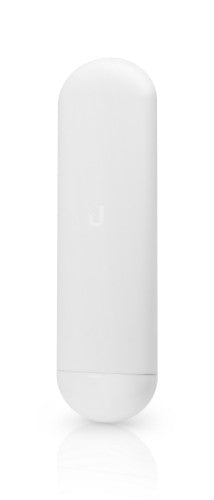

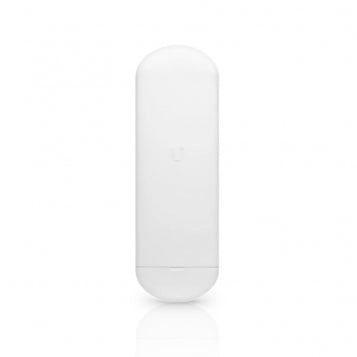

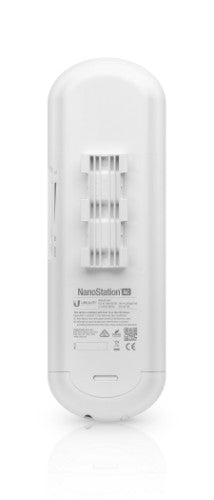

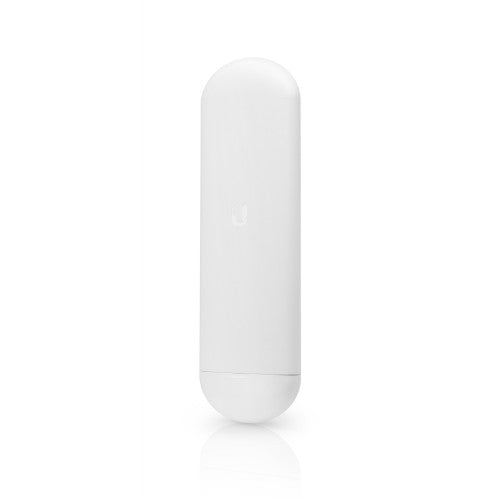

NanoStation AC, 5 GHz airMAX ac Radio, (2) 10/100/1000 Mbps Ethernet Ports, Atheros MIPS 74Kc, 560 MHz, 64 MB DDR2
Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

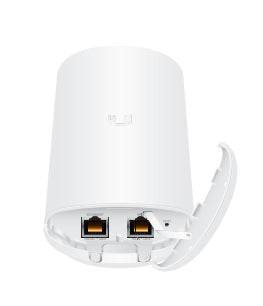

Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Description
The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.
Dual Ethernet Connectivity
The NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
| 5 GHz | Yes |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Maximum outdoor range | 15000 m |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Certification | CE, FCC, IC |
| Maximum data transfer rate | 1000 Mbit/s |
| Operating system installed | AirOS |
| Internal memory | 64 MB |
| Built-in processor | Yes |
| Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Maximum outdoor range | 15000 m |
| Network | |
| Internal | No |
| Bandwidth | |
| Channel bandwidth | 80 MHz |
| Memory | |
| Internal memory | 64 MB |
| Features | |
| 5 GHz | Yes |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Maximum outdoor range | 15000 m |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Channel bandwidth | 80 MHz |
| Maximum data transfer rate | 1000 Mbit/s |
| Throughput data rate | 450 Mbit/s |
| Operating system installed | AirOS |
| Internal memory | 64 MB |
| Built-in processor | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Input current | 0.5 A |
| AC input voltage | 24 V |
| Design | |
| Placement | Ceiling |
| Product colour | White |
| Internal | No |
| LED indicators | Network, Power, Signal strength |
| Certification | CE, FCC, IC |
| Antenna | |
| Antenna gain level (max) | 16 dBi |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | CE, FCC, IC |
| Indication | |
| LED indicators | Network, Power, Signal strength |
| Weight & dimensions | |
| Width | 257 mm |
| Depth | 84 mm |
| Weight | 233 g |
| Height | 41 mm |
| Packaging data | |
| PoE adapter included | Yes |
| Packaging content | |
| PoE adapter included | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 70 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
