Description

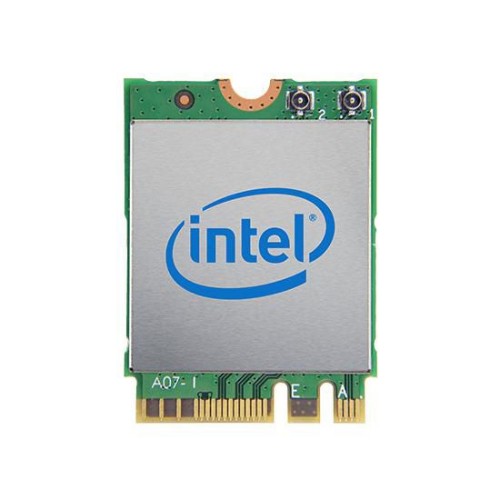

Intel Wireless-AC 9260, 2230, 2x2 AC+BT, Gigabit, No vPro
Multi-user MIMO (MU-MIMO) is a set of multiple-input and multiple-output technologies for wireless communication, in which a set of users or wireless terminals, each with one or more antennas, communicate with each other.
Description
MU-MIMOMulti-user MIMO (MU-MIMO) is a set of multiple-input and multiple-output technologies for wireless communication, in which a set of users or wireless terminals, each with one or more antennas, communicate with each other.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Interface | WLAN |
| Host interface | M.2 |
| Connectivity technology | Wireless |
| Bandwidth | |
| Maximum data transfer rate | 1730 Mbit/s |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 1733 Mbit/s |
| Antenna | |
| Antenna type | 2x2 |
| Technical details | |
| Interface type | Wi-Fi(PCIe), BT(USB) |
| Supported Under vPro | No |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G165483 |
| Product type | Wireless |
| Processor family | Intel Wireless-AC Products |
| Status | Launched |
| Product brief URL | https://www.intel.com/content/www/us/en/wireless-products/dual-band-wireless-ac-9260-brief.html |
| Launch date | Q4'17 |
| Network | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Bluetooth version | 5 |
| Networking standards | IEEE 802.11ac |
| WLAN data transfer rates supported | 1733 Mbit/s |
| Maximum data transfer rate | 1730 Mbit/s |
| Bluetooth | Yes |
| MU-MIMO | Yes |
| Design | |
| Internal | Yes |
| Form factor | M.2 2230 |
| Antenna type | 2x2 |
| Component for | PC/Laptop |
| Package size | 22 x 30 x 2.4 mm |
| Product series | Intel® Wireless Products |
| Product codename | Thunder Peak |
| System requirements | |
| Compatible operating systems | Windows 10, 64-bit*|Linux* |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 80 °C |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 80 °C |
| Weight & dimensions | |
| Weight | 2.9 g |
| Performance | |
| Supported Under vPro | No |
| Other features | |
| Bluetooth version | 5 |
| Form factor | M.2 2230 |
| Compatible operating systems | Windows 10, 64-bit*|Linux* |
| Bluetooth | Yes |
| Product type | Wireless |
| Processor family | Intel Wireless-AC Products |
| Interface type | Wi-Fi(PCIe), BT(USB) |
| Supported Under vPro | No |
| Status | Launched |
| Product brief URL | https://www.intel.com/content/www/us/en/wireless-products/dual-band-wireless-ac-9260-brief.html |
| Launch date | Q4'17 |
| Product series | Intel® Wireless Products |
| Product codename | Thunder Peak |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G165483 |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 80 °C |
| Compliance | FIPS, FISMA |
| Antenna type | 2x2 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
