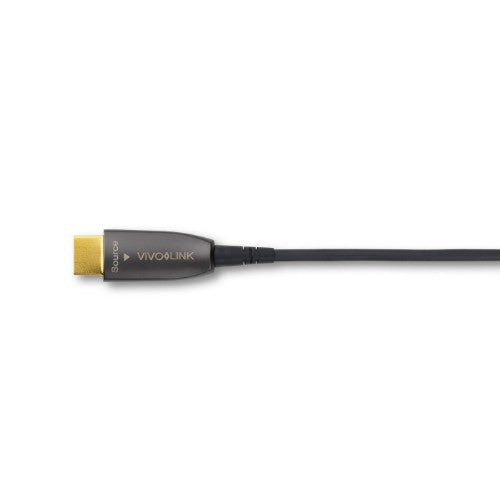

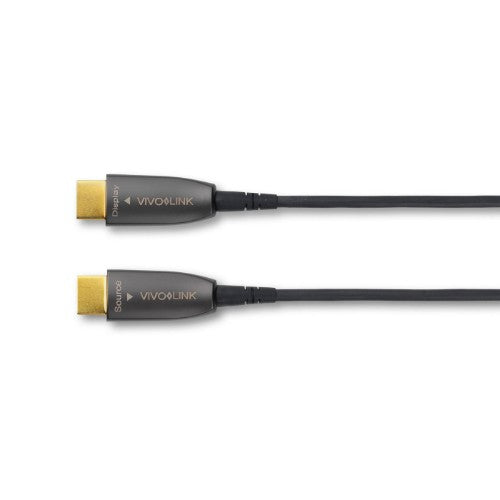

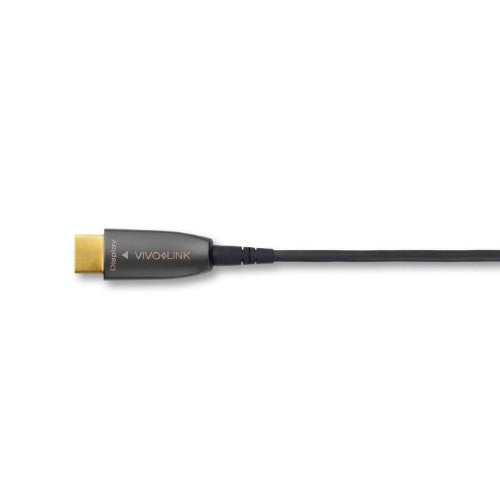

Vivolink OPTIC HDMI 4K CABLE

Optic HDMI 4K Cable 30m

Key Features

• CEC & ARC Support
• Cable is built with military standard optical fiber
• Power consumption only 0,25W
• Optic fiber is covered with copper wires
• Kevlar filling inside makes the cable extremely strong and robust
• Lock ring in cable head secure no damage by pulling in cable
• Cable head is made by molded metal
• Connector pins are gold bladed for a reliable and perfect contact
• The optical fiber converter is extremly high quality chip set
• Minimum bend radius: 20mm
• Unlimited number of bends with bend radius down to 20mm
• working temperature: -20 degree to + 60 degree

Description

HDMI 2.0 Support 4K/60Hz 4:4:4 18Gbps, HDR 12bit, HDCP2.2, 3D & ARC. Slim size of 4.0mm.
Typical installation:
Places where high resolution is required on long distance.


Tensile Strength (Pull resistance): 20 kg.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
Dolby technologies	DTS-HD Master Audio
Colour depth	16 bit
HDMI Ethernet channel	Yes
Product colour	Black
Cable length	30 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Cable material	Fiber optic
HDMI version	2.0
Data transfer rate	18 Gbit/s
3D	Yes
Maximum resolution	4096 x 2160 pixels
Supported graphics resolutions	4096 x 2160
Supported video modes	2160p
HDCP	Yes
Plug and Play	Yes
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Quantity per pack	1 pc(s)
HDCP version	2.2
Operational conditions
Operating temperature (T-T)	-20 - 60 °C
Weight & dimensions
Package weight	556 g
Weight	456 g
Package width	225 mm
Package depth	210 mm
Package height	47 mm
Cable diameter	5 mm
Packaging content
Quantity per pack	1 pc(s)
Technical details
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	84733080
