Description

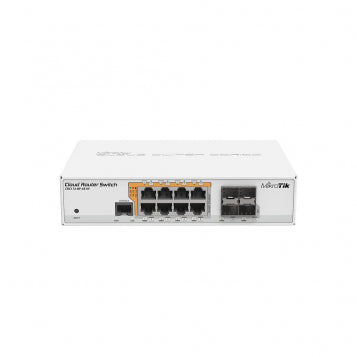

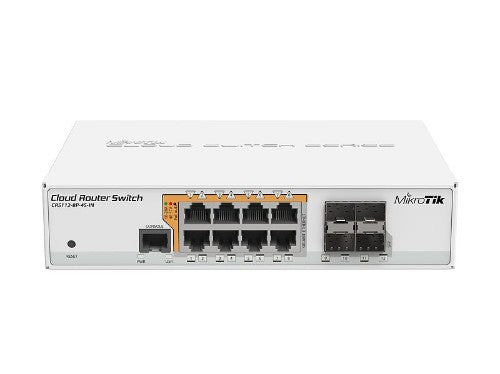

8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5

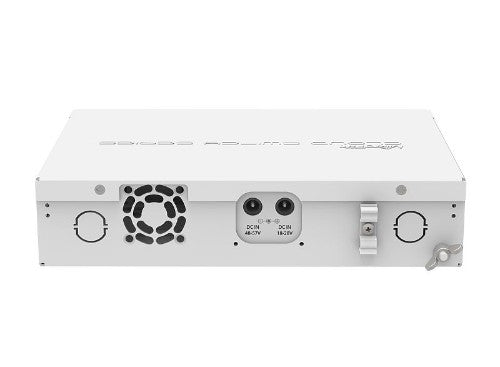

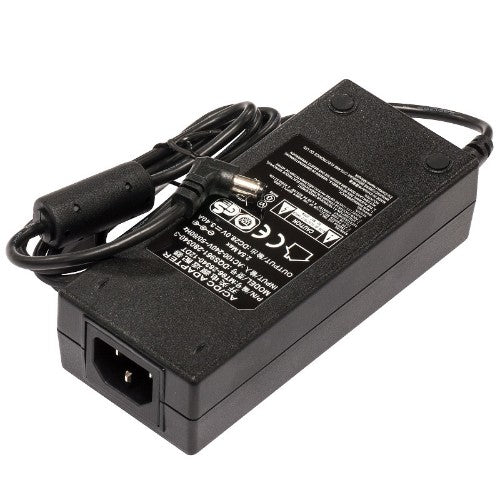

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins
Description
CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins
Specifications
| Ports & interfaces | |
|---|---|
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Design | |
| Product colour | White |
| Performance | |
| Processor frequency | 400 MHz |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Compatible operating systems | RouterOS L5 |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 10 W |
| DC input voltage | 18 - 57 V |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| AC adapter included | Yes |
| Technical details | |
| Product colour | White |
| Processor frequency | 400 MHz |
| Built-in processor | Yes |
| Memory | |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| System requirements | |
| Compatible operating systems | RouterOS L5 |
| Packaging content | |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
