Description

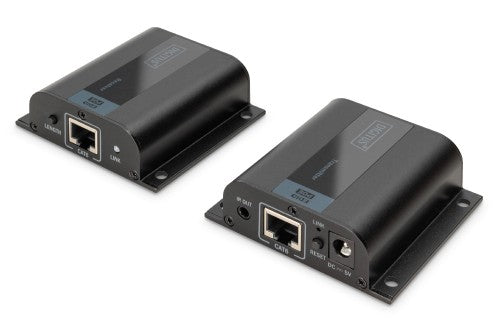

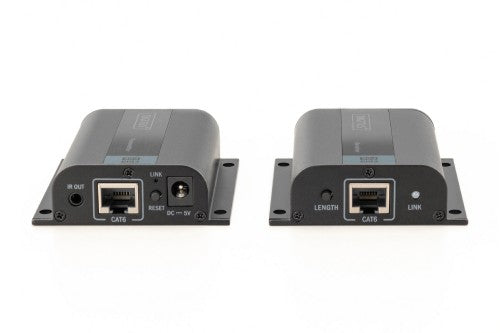

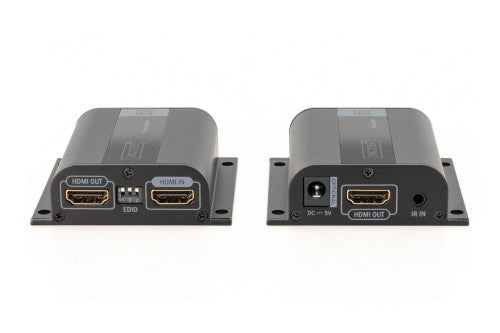

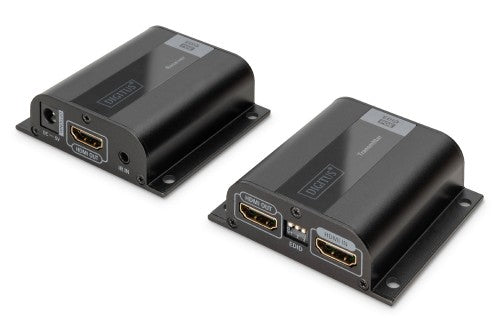

HDMI Extender Set, 50 m over network cable (CAT 6/6a/7), EDID, 1x HDMI loop out, FHD, 1080p
- Extends the maximum length for HDMI cables to up to 50 m via a simple network cable
- Highest supported video resolution: 1080p / 60 Hz
- Supports CAT 6, CAT 6A and CAT 7 network cables
- Manual EDID switch - Allows you to set the resolution and audio format on the transmitter unit
- HDMI Loop Out - Enables the connection of a local monitor to the transmitter unit
- Supports PoE (Power over Ethernet) - therefore a power supply for the receiver unit is not required
The Digitus HDMI Extender Set, Full HD offers an extender solution up to 50 m for the highest demands. It transmits digital video and audio signals over a maximum length of up to 50 m. The highest supported video resolution is 1080p / 60Hz. There is an EDID switch on the transmitter unit with which the resolution and audio format of the output signal can be regulated. There is also an HDMI Loop Out port on the transmitter, which enables the connection of a local monitor. Thanks to PoC (Power over cable) support, only the transmitter unit needs to be supplied with power. Two bidirectional infrared units (transmitter, receiver) are supplied, which can be used for remote control of the connected input source.
Key Features
- Extends the maximum length for HDMI cables to up to 50 m via a simple network cable
- Highest supported video resolution: 1080p / 60 Hz
- Supports CAT 6, CAT 6A and CAT 7 network cables
- Manual EDID switch - Allows you to set the resolution and audio format on the transmitter unit
- HDMI Loop Out - Enables the connection of a local monitor to the transmitter unit
- Supports PoE (Power over Ethernet) - therefore a power supply for the receiver unit is not required
- Supports HDCP 1.2a
- Bandwidth: 4.95 Gbps
- Color depth: 8 bit
- Supports uncompressed audio signals such as LPCM
- Metal housing
- Compact size, easy handling and installation
- Power supply unit: DC 5V/2A
- Compression: Uncompressed
- Dimensions (1x unit): L 7.2 x W 6.70 x H 2.3 cm
- Color: black
Description
Extends the maximum length for HDMI cables to up to 50 m using only a single network cable between a transmitter and a receiver unit- Extends the maximum length for HDMI cables to up to 50 m via a simple network cable
- Highest supported video resolution: 1080p / 60 Hz
- Supports CAT 6, CAT 6A and CAT 7 network cables
- Manual EDID switch - Allows you to set the resolution and audio format on the transmitter unit
- HDMI Loop Out - Enables the connection of a local monitor to the transmitter unit
- Supports PoE (Power over Ethernet) - therefore a power supply for the receiver unit is not required
The Digitus HDMI Extender Set, Full HD offers an extender solution up to 50 m for the highest demands. It transmits digital video and audio signals over a maximum length of up to 50 m. The highest supported video resolution is 1080p / 60Hz. There is an EDID switch on the transmitter unit with which the resolution and audio format of the output signal can be regulated. There is also an HDMI Loop Out port on the transmitter, which enables the connection of a local monitor. Thanks to PoC (Power over cable) support, only the transmitter unit needs to be supplied with power. Two bidirectional infrared units (transmitter, receiver) are supplied, which can be used for remote control of the connected input source.
Specifications
| Features | |
|---|---|
| Material | Metal |
| HDCP | Yes |
| Colour depth | 8 bit |
| HDCP & EDID bypass | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum transfer distance | 50 m |
| Supported video modes | 1080p |
| Bandwidth | 4.95 Gbit/s |
| Product colour | Black |
| Technical details | |
| Material | Metal |
| HDCP | Yes |
| Colour depth | 8 bit |
| HDCP & EDID bypass | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum transfer distance | 50 m |
| Supported video modes | 1080p |
| Bandwidth | 4.95 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Country of origin | China |
| Package volume | 2400 cm³ |
| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Weight & dimensions | |
| Transmitter dimensions (WxDxH) | 67 x 72 x 23 mm |
| Receiver dimensions (WxDxH) | 67 x 72 x 23 mm |
| Package depth | 200 mm |
| Package width | 150 mm |
| Package height | 80 mm |
| Package weight | 1.15 kg |
| Packaging data | |
| Package depth | 200 mm |
| Package width | 150 mm |
| Package height | 80 mm |
| Package weight | 1.15 kg |
| Packaging content | |
| IR receiver included | Yes |
| IR blaster included | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 425 mm |
| Master (outer) case height | 420 mm |
| Master (outer) case gross weight | 11.5 kg |
| Master (outer) case volume | 56227 cm³ |
| UK Trade Tariff code | 85176200 |
