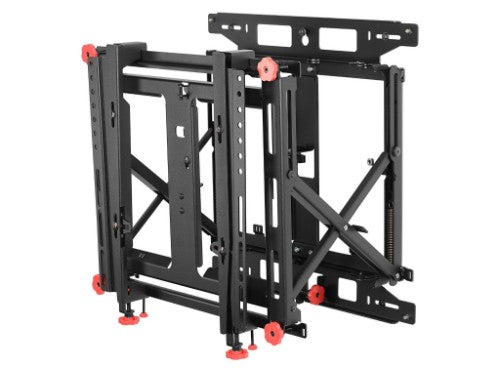

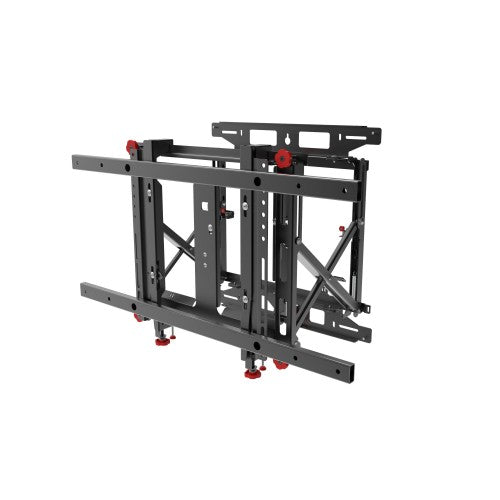

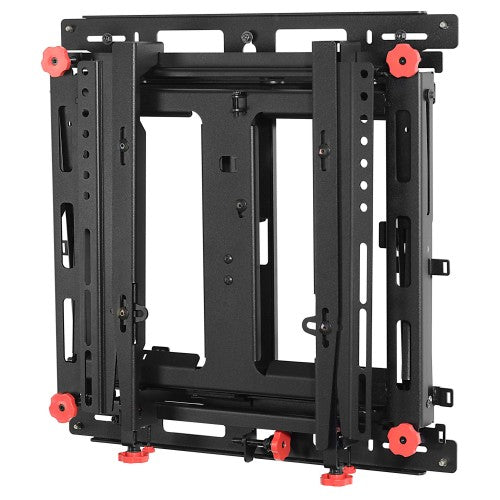

Supreme Full Service Video Wall Mount with Quick Release
Key Features
- Compatible up to VESA 600 x 400mm
- Accommodates displays in landscape and portrait orientation
- Integrated cable management allow cables to move in and out with the display
- Modular mount for unlimited video wall display configurations
- Security hardware option deters tapering and theft
- 1.5" of fine tune adjustment on each of the X, Y and Z axis
- Easy hang wall plate is compatible with the Peerless-AV install app for a simplified install
- Gentle, press-to-release quick release mechanism provides convenient display access
- Reusable custom wall spacers eliminate guesswork and on-site install calculations
Description
Peerless-AV’s Supreme Full Service Video Wall Mount with Quick Release raises the bar of excellence with an enhanced feature set centered on ease of install and display alignment. With the addition of tool-less lateral micro-adjustment, the Supreme offers 1.5" of fine tune adjustment on each of the X, Y and Z axis. Serviceability is easier than ever before, with a gentle press to release, any display in the video wall configuration can be quickly extended for maintenance. Reusable spacers can be used for both portrait and landscape applications resulting in a faster install and lower cost. Enhanced cable management allows the cables to effortlessly travel in and out with the display, preventing them from getting pinched or pulled loose when extended.
Specifications
| Mounting |
|---|
| Minimum screen size |
116.8 cm (46") |
| Maximum weight capacity |
56.8 kg |
| Panel mounting interface |
200 x 200,300 x 300,400 x 400,400 x 300,600 x 400 |
| Number of displays supported |
1 |
| Mounting type |
Wall |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
600 x 400 mm |
| Maximum screen size |
152.4 cm (60") |
| Ergonomics |
|---|
| Distance to the wall (min) |
8 cm |
| Distance to the wall (max) |
35.1 cm |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
540 mm |
| Depth |
370 mm |
| Height |
545 mm |
| Weight |
15.5 kg |
| Package width |
771 mm |
| Package depth |
114 mm |
| Package height |
600 mm |
| Package weight |
17.4 kg |
| Packaging data |
|---|
| Package width |
771 mm |
| Package depth |
114 mm |
| Package height |
600 mm |
| Package weight |
17.4 kg |
| Technical details |
|---|
| Number of displays supported |
1 |
| Mounting type |
Wall |
| Distance to the wall (min) |
8 cm |
| Distance to the wall (max) |
35.1 cm |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
