Description
ARM 32bit, 98DX3236, 800 MHz, 443 x 300 x 44 mm, 512 MB, 16 MB, -20°C to 60°C494 W, 44 W, 2 fans, 1000 mA, 20 A

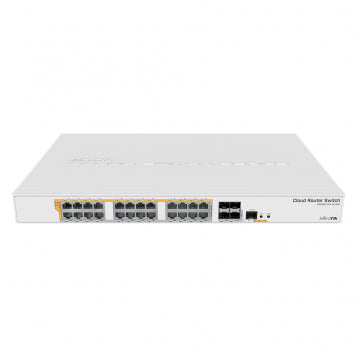

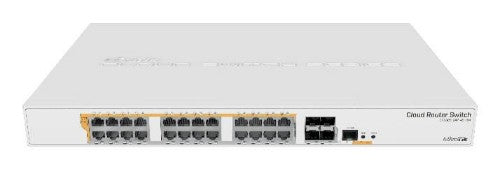

CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.
Key Features
- CPU temperature monitor
- Current Monitor
- PCB temperature monitor
- Voltage Monitor
- Mode button
Description
CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3ad |
| VLAN support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10218 |
| Throughput | 64000 Mpps |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 95.2 Mpps |
| Number of VLANs | 4000 |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Protocols | |
| Management protocols | SNMP |
| Design | |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Processor frequency | 800 MHz |
| Mean time between failures (MTBF) | 200000 h |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 44 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 450 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE, PoE+ |
| Power over Ethernet (PoE) voltage | 26 V |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 0 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Weight & dimensions | |
| Width | 443 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Processor frequency | 800 MHz |
| Mean time between failures (MTBF) | 200000 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
