FA3105-L Eyeball Sensor Unit, 1080p, IR
Key Features
- Built-in IR for video in complete darkness; Corridor format for vertically oriented coverage areas; Eyeball design for optimized installation flexibility; Forensic WDR
Description

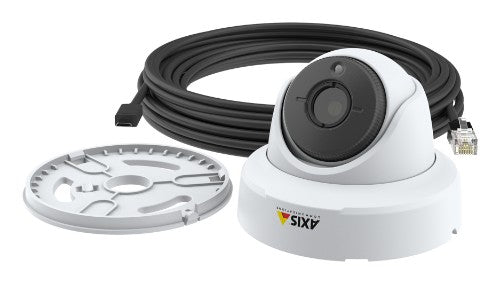

AXIS FA3105-L Eyeball Sensor Unit is a discreet flat-faced sensor unit with eyeball design for optimized installation flexibility. With built-in IR illumination and automatic IR cut filter, it is a true day-and-night device, ideally suited for installation in banks, shops, and gas stations that need video around the clock. For use with an AXIS FA Main Unit, AXIS FA3105-L offers HDTV 1080p for excellent video quality, and features Forensic WDR for clarity in all light conditions. The unit comes with a plate for easy surface mounting and an 8 m (26 ft) cable for connection to a main unit.
Specifications
| Features |
|---|
| Housing material |
Aluminium, Plastic |
| Type |
Sensor unit |
| Placement supported |
Indoor |
| Product colour |
White |
| Certification |
CE |
| Image sensor size |
1/3" |
| Sensor type |
CMOS |
| Viewing angle, horizontal |
103° |
| Viewing angle, vertical |
55° |
| Resolution |
1920 x 1080 pixels |
| Day/night mode |
Yes |
| Image sensor |
|---|
| Image sensor size |
1/3" |
| Sensor type |
CMOS |
| Viewing angle, horizontal |
103° |
| Viewing angle, vertical |
55° |
| Resolution |
1920 x 1080 pixels |
| Day/night mode |
Yes |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Technical details |
|---|
| Type |
Sensor unit |
| Placement supported |
Indoor |
| Harmonized System (HS) code |
85299020 |
| Weight & dimensions |
|---|
| Diameter |
7.27 cm |
| Weight |
88 g |
| Depth |
57 mm |
| Colour |
|---|
| Product colour |
White |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
-20 - 50 °C |
| Certificates |
|---|
| Certification |
CE |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299020 |
