T91B47 Pole Mount 100-410 mm
Key Features
- Axis stainless steel (SS316L) straps included; IK10-rated vandal resistance; NEMA 4X-rated corrosion protection; Safe and easy to install; Suitable for a wide range of pole diameters
Description

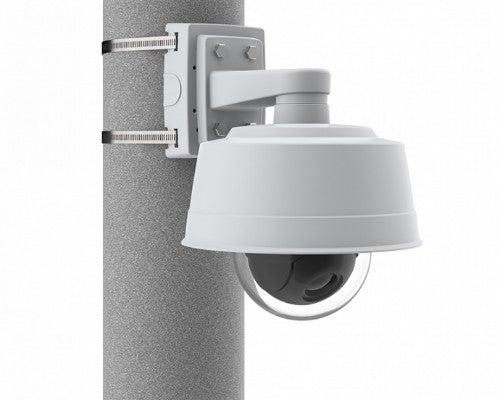

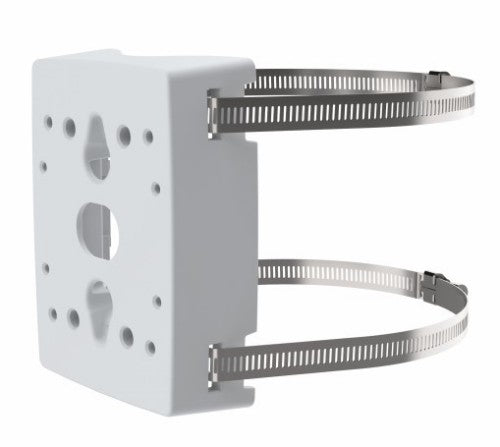

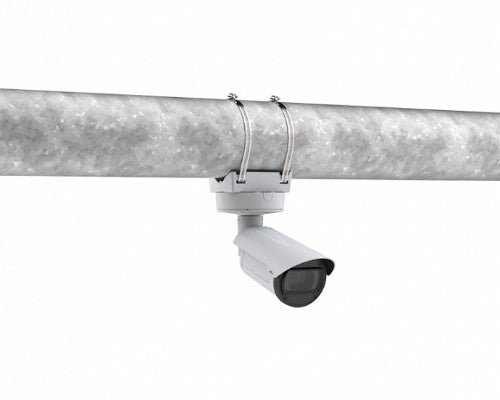

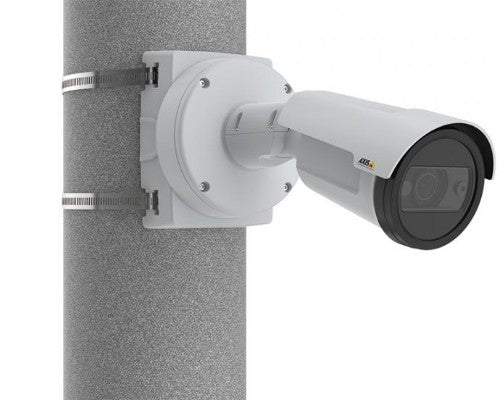

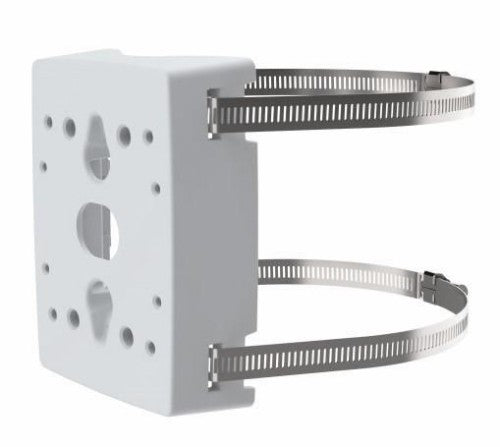

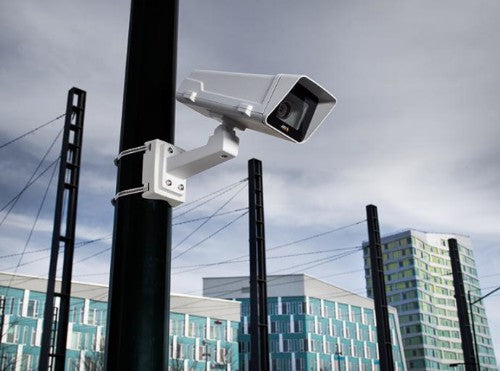

AXIS T91B47 Pole Mount is designed for both indoor and outdoor use. It is available in two versions with different lengths of marine-grade (SS316L) stainless steel straps. One version for poles with diameter between 50–150 mm (2–6 in), and one for poles with diameter between 100-410 mm (4–16 in) in diameter. Additionally, it can be used for attaching cameras to beams. When AXIS T91B47 is used for Axis fixed dome or fixed bullet cameras, no additional accessories such as pendant kits are required, ensuring a cost-efficient solution.
Specifications
| Features |
|---|
| Housing material |
Plastic, Stainless steel |
| Brand compatibility |
Axis |
| Compatibility |
T92E05 Protective Housing
T92E20 Outdoor Housing
T92G20 Outdoor Housing
T93F05 Protective Housing
T93F10 Outdoor Housing
T93F20 Outdoor Housing
T93G05 Protective Housing
P33 Mounting Bracket
Steel Straps TX30
T91E61 Wall Mount
T91R61 Wall Mount
T94B01P Conduit Back Box
T94F01S Mount Bracket
T94Q01A Wall Mount
T94S01P Conduit Back Box
D2050-VE
C3003-E
M3024-LVE
M3025-VE
M3026-VE
M3037-PVE
M3057-PLVE
M3058-PLVE
P3224-LV Mk II
P3224-V Mk II
P3225-LV Mk II
P3225-V Mk II
P3227-LV
P3228-LV
P3235-LV
P3367-VE
P3375-LVE
P3375-VE
P3807-PVE
Q3515-LV
Q3515-LVE
Q3517-LV
Q3517-LVE
Q3518-LVE
Q3527-LVE
Q3615-VE
Q3617-VE
M1124-E
M1125-E
P1364-E
P1365-E Mk II
P1367-E
P1368-E
P1435-LE
P1445-LE
P1445-LE-3
P1447-LE
P1448-LE
Q1615-E Mk II
Q1645-LE
Q1647-LE
Q1765-LE
Q1785-LE
Q1786-LE
Q1941-E
Q1942-E
Q2901-E |
| Type |
Mount |
| Placement supported |
Universal |
| Product colour |
Grey, Metallic |
| Technical details |
|---|
| Compatibility |
T92E05 Protective Housing
T92E20 Outdoor Housing
T92G20 Outdoor Housing
T93F05 Protective Housing
T93F10 Outdoor Housing
T93F20 Outdoor Housing
T93G05 Protective Housing
P33 Mounting Bracket
Steel Straps TX30
T91E61 Wall Mount
T91R61 Wall Mount
T94B01P Conduit Back Box
T94F01S Mount Bracket
T94Q01A Wall Mount
T94S01P Conduit Back Box
D2050-VE
C3003-E
M3024-LVE
M3025-VE
M3026-VE
M3037-PVE
M3057-PLVE
M3058-PLVE
P3224-LV Mk II
P3224-V Mk II
P3225-LV Mk II
P3225-V Mk II
P3227-LV
P3228-LV
P3235-LV
P3367-VE
P3375-LVE
P3375-VE
P3807-PVE
Q3515-LV
Q3515-LVE
Q3517-LV
Q3517-LVE
Q3518-LVE
Q3527-LVE
Q3615-VE
Q3617-VE
M1124-E
M1125-E
P1364-E
P1365-E Mk II
P1367-E
P1368-E
P1435-LE
P1445-LE
P1445-LE-3
P1447-LE
P1448-LE
Q1615-E Mk II
Q1645-LE
Q1647-LE
Q1765-LE
Q1785-LE
Q1786-LE
Q1941-E
Q1942-E
Q2901-E |
| Type |
Mount |
| Placement supported |
Universal |
| Harmonized System (HS) code |
85299020 |
| Weight & dimensions |
|---|
| Width |
111 mm |
| Weight |
300 g |
| Height |
147 mm |
| Depth |
42 mm |
| Colour |
|---|
| Product colour |
Grey, Metallic |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299020 |
