Description
2.4/5 GHz, 3.85 Gbps, 16 SSIDs, USB, Bluetooth, Ethernet x 2
Description

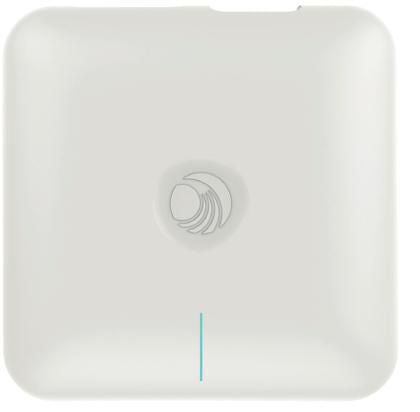

The High powered, Gigabit speed, beamforming, Multi-user MIMO (MU-MIMO) 802.11ac wave 2 E600 access point with a 4x4 array antenna array implements the latest standards. Perfect for just about any place needing high capacity throughput, high range, and/or high client capacity. Ideal workhorse to take on high traffic demand in Classrooms (Schools), Indoor public spaces, Malls, Hotels, or Enterprise officesSpecifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 3850 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Syslog | Yes |
| Frequency band | 2400 - 2484/5150 - 5850 GHz |
| Number of users | 512 user(s) |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.3af, IEEE 802.3at |
| Maximum indoor range | 250 m |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | FCC, ETSI, CE EN 60601-1-2 (Medical EMC) UL2043 Plenum rated |
| Maximum data transfer rate | 3850 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Wireless LAN features | |
| Frequency band | 2400 - 2484/5150 - 5850 GHz |
| Maximum indoor range | 250 m |
| Network | |
| Internal | No |
| Number of users | 512 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.3af, IEEE 802.3at |
| Security | |
| Cable lock slot | Yes |
| Number of SSID supported | 16 |
| Security algorithms | 802.1x RADIUS, EAP-AKA, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, WPA-TKIP, WPA2-AES |
| Access Control List (ACL) | Yes |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Syslog | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Frequency band | 2400 - 2484/5150 - 5850 GHz |
| Number of users | 512 user(s) |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.11w, IEEE 802.3af, IEEE 802.3at |
| Maximum indoor range | 250 m |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 3850 Mbit/s |
| Dynamic Frequency Selection (DFS) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Fit AP mode features | Hotspot 2.0 |
| Protocols | |
| DHCP server | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (max) | 22 W |
| AC input voltage | 12 V |
| Design | |
| Product colour | White |
| Internal | No |
| LED indicators | Yes |
| Certification | FCC, ETSI, CE EN 60601-1-2 (Medical EMC) UL2043 Plenum rated |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antenna gain level (max) | 4.55 dBi |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | FCC, ETSI, CE EN 60601-1-2 (Medical EMC) UL2043 Plenum rated |
| Indication | |
| LED indicators | Yes |
| Software | |
| Access Control List (ACL) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 42 mm |
| Weight | 400 g |
| Height | 180 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
