Description
HDMI Switch 2-Port, 4K@30Hz, Bi-Directional, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays) or Connects x2 HDMI sources to x1 display, Manual Selection, No external power required, 3 Year Warranty

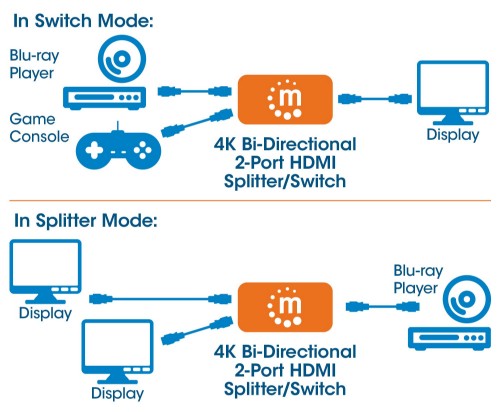

The Manhattan 4K Bi-Directional 2-Port HDMI Splitter Switch with built-in booster makes it possible to share a 4K HDMI signal from a single UHD source on one of two UHD displays or to connect two UHD sources and switch between them on one UHD display._x000D_
_x000D_
Best Possible Image Quality and Easy Installation_x000D_
Full compliance with HDMI and HDCP 1.4 ensures the Manhattan 4K Bi-Directional 2-Port HDMI Splitter Switch provides nothing short of high-quality performance and reliability. It delivers cinematic 4K resolution and supports 3D video, Deep colour as well as LPCM, DTS and Dolby TrueHD audio. Simply connect the HDMI cables (not included) to the device and create your desired setup. Power is drawn from the HDMI sources to support the signal(s). No software/hardware configuration or complicated settings are required to complete this cost-effective 4K solution.
Key Features
- Splits an Ultra-High-Definition (UHD) digital audio/video signal to one of two UHD HDMI displays or allows switching between two sources at one display
- 4K@30Hz resolution, full 3D video and Deep colour
- Convenient push button to quickly select display(s) in splitter function or source in switch function
- Supports video amplifier bandwidth up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
- Supports 36-bit Deep colour (12-bits per channel) and sYCC colour Space
- Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio
- HDCP compliant
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers; also works to capture gameplay on screen
- Plug and play
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
Description
Easily share a single Ultra-High-Definition (UHD) signal over two displays or switch between two sources on one display._x000D_The Manhattan 4K Bi-Directional 2-Port HDMI Splitter Switch with built-in booster makes it possible to share a 4K HDMI signal from a single UHD source on one of two UHD displays or to connect two UHD sources and switch between them on one UHD display._x000D_
_x000D_
Best Possible Image Quality and Easy Installation_x000D_
Full compliance with HDMI and HDCP 1.4 ensures the Manhattan 4K Bi-Directional 2-Port HDMI Splitter Switch provides nothing short of high-quality performance and reliability. It delivers cinematic 4K resolution and supports 3D video, Deep colour as well as LPCM, DTS and Dolby TrueHD audio. Simply connect the HDMI cables (not included) to the device and create your desired setup. Power is drawn from the HDMI sources to support the signal(s). No software/hardware configuration or complicated settings are required to complete this cost-effective 4K solution.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI version | 1.4 |
| HDMI ports quantity | 3 |
| Number of HDMI outputs | 2 |
| HDMI in | 1 |
| Features | |
| Audio output channels | 7.1 channels |
| HD type | 4K Ultra HD |
| Connector contacts plating | Gold |
| 3D | Yes |
| Product colour | Black |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Plug and Play | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Material | Metal |
| LED indicators | Yes |
| HDCP | Yes |
| Bandwidth | 340 MHz |
| Bandwidth | 10.2 Gbit/s |
| Audio decoders | DTS-HD Master Audio, Dolby TrueHD |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Width | 52 mm |
| Height | 20 mm |
| Depth | 49 mm |
| Weight | 100 g |
| Technical details | |
| Audio output channels | 7.1 channels |
| HD type | 4K Ultra HD |
| Connector contacts plating | Gold |
| 3D | Yes |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Width | 52 mm |
| Height | 20 mm |
| Depth | 49 mm |
| Product colour | Black |
| Video port type | HDMI |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Plug and Play | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Material | Metal |
| LED indicators | Yes |
| HDMI version | 1.4 |
| HDMI ports quantity | 3 |
| HDCP | Yes |
| Bandwidth | 340 MHz |
| Bandwidth | 10.2 Gbit/s |
| Audio decoders | DTS-HD Master Audio, Dolby TrueHD |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Packaging content | |
| Quick start guide | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
