Description

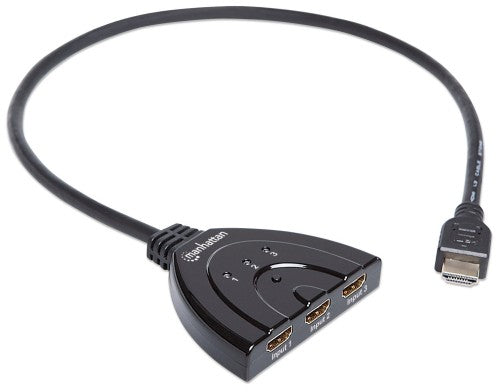

HDMI Switch 3-Port, 1080p, Connects x3 HDMI sources to x1 display, Manual Switching (via button), Integrated Cable (58cm), No external power required, Black, Three Year Warranty

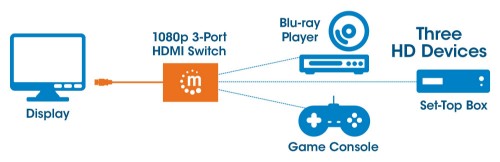

The Manhattan 1080p 3-Port HDMI Switch allows media enthusiasts to connect three HDMI video sources - including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices - to a single high-definition display.
Flexible Solution for Many HD Applications
With the increased number of high-definition media devices, the Manhattan 1080p 3-Port HDMI Switch expands the connectivity options for your HDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, it offers a switching button so you can manually select sources when more than one HD video source is on at the same time.
Best Possible Image Quality
Full compliance with HDMI and HDCP 1.0/1.1 ensures the Manhattan 1080p 3-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers full 1080p resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.
Key Features
- Connects up to three HD video sources to a single HDMI display
- Supports automatic switching (when an HD signal is detected) and manual switching (between sources with the push of a button)
- 1080p resolution, 3D, Deep colour
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
- HDCP compliant
- Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
- Supports 3D video and 8-bits (24-bits total) Deep colour
- Supports video amplifier bandwidth up to 2.5 Gbps for 1080p display
- Plug and play
- Plug and play: no special setup, power or remote required
- Integrated HDMI cable
- Gold-plated contacts
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
Description
Easily connect multiple HDMI sources to a single display.The Manhattan 1080p 3-Port HDMI Switch allows media enthusiasts to connect three HDMI video sources - including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices - to a single high-definition display.
Flexible Solution for Many HD Applications
With the increased number of high-definition media devices, the Manhattan 1080p 3-Port HDMI Switch expands the connectivity options for your HDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, it offers a switching button so you can manually select sources when more than one HD video source is on at the same time.
Best Possible Image Quality
Full compliance with HDMI and HDCP 1.0/1.1 ensures the Manhattan 1080p 3-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers full 1080p resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI version | 1.3b |
| HDMI ports quantity | 3 |
| Number of HDMI outputs | 1 |
| HDMI in | 3 |
| Features | |
| HD type | Full HD |
| Connector contacts plating | Gold |
| 3D | Yes |
| Product colour | Black |
| Supported video modes | 1080p |
| Plug and Play | Yes |
| Maximum operating distance | 15 m |
| HDCP | Yes |
| Cable length | 0.58 m |
| Bandwidth | 250 MHz |
| Bandwidth | 2.5 Gbit/s |
| Audio decoders | DTS, DTS-HD Master Audio, Dolby TrueHD |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Width | 61 mm |
| Height | 15 mm |
| Depth | 82 mm |
| Weight | 2.27 kg |
| Technical details | |
| HD type | Full HD |
| Connector contacts plating | Gold |
| 3D | Yes |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Width | 61 mm |
| Height | 15 mm |
| Depth | 82 mm |
| Product colour | Black |
| Video port type | HDMI |
| Supported video modes | 1080p |
| Plug and Play | Yes |
| Maximum operating distance | 15 m |
| HDMI version | 1.3b |
| HDMI ports quantity | 3 |
| HDCP | Yes |
| Cable length | 0.58 m |
| Bandwidth | 250 MHz |
| Bandwidth | 2.5 Gbit/s |
| Audio decoders | DTS, DTS-HD Master Audio, Dolby TrueHD |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Packaging content | |
| Quick start guide | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
