Description
HDMI Splitter 2-Port , 1080p, Black, Displays output from x1 HDMI source to x2 HD displays (same output to both displays), USB-A Powered (cable included, 0.7m), Three Year Warranty

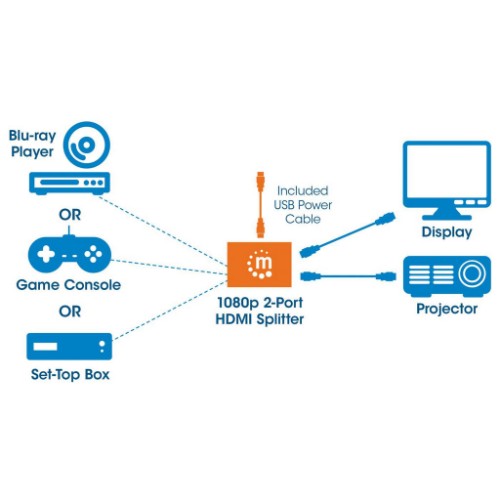

The Manhattan 1080p 2-Port HDMI Splitter sends HDMI signals from a single Blu-ray player, satellite receiver, digital recorder, set-top box, game console or other HDMI source to two HDMI displays. _x000D_
_x000D_
Flexible Solution for Many A/V Applications_x000D_
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan 1080p 2-Port HDMI Splitter features a built-in booster for added signal strength. It’s also a good choice for splitting and distributing a synchronous signal to multiple HDMI displays when source equipment is remotely stored in a secured room or cabinet. Users can cascade multiple units up to three levels and output HDMI video/audio to additional displays in widely distributed applications._x000D_
_x000D_
Quality Construction and Easy Installation_x000D_
Full compliance with HDMI, HDCP 1.0, 1.1 and 1.2 as well as DVI 1.0 ensures that the Manhattan 1080p 2-Port HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the USB power cable, and this affordable HDMI solution is complete — no complicated settings or software or hardware configurations necessary.
Key Features
- Displays video from one HDMI source on two HD displays
- Delivers a sharp, clear signal from Blu-ray players, set-top boxes, satellite receivers and more
- Cascadable up to three levels to expand signal distribution to more displays
- HDCP compliant
- Supports LPCM, DTS@ Digital, DTS-HD Master Audio and Dolby TrueHD audio
- Supports 1080p HD resolution, 3D video and Deep colour
- Supports the video amplifier bandwidth up to 2.25 Gbps
- Plug and play
- Plug-and-play installation; no special setup or remote
- Gold-plated contacts
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
Description
Easily distribute a single HDMI signal to multiple displays._x000D_The Manhattan 1080p 2-Port HDMI Splitter sends HDMI signals from a single Blu-ray player, satellite receiver, digital recorder, set-top box, game console or other HDMI source to two HDMI displays. _x000D_
_x000D_
Flexible Solution for Many A/V Applications_x000D_
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan 1080p 2-Port HDMI Splitter features a built-in booster for added signal strength. It’s also a good choice for splitting and distributing a synchronous signal to multiple HDMI displays when source equipment is remotely stored in a secured room or cabinet. Users can cascade multiple units up to three levels and output HDMI video/audio to additional displays in widely distributed applications._x000D_
_x000D_
Quality Construction and Easy Installation_x000D_
Full compliance with HDMI, HDCP 1.0, 1.1 and 1.2 as well as DVI 1.0 ensures that the Manhattan 1080p 2-Port HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the USB power cable, and this affordable HDMI solution is complete — no complicated settings or software or hardware configurations necessary.
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 3 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 1.3b |
| Connector contacts plating | Gold |
| Cable length | 0.7 m |
| Features | |
| LED indicators | Yes |
| Housing material | Plastic |
| Dolby technologies | DTS, DTS-HD Master Audio, Dolby TrueHD |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 15 m |
| Product colour | Black |
| Certification | CE, FCC, RoHS2 |
| 3D | Yes |
| Connector contacts plating | Gold |
| Bandwidth | 225 MHz |
| Cable length | 0.7 m |
| Power | |
| USB powered | Yes |
| Power consumption (typical) | 5 W |
| Weight & dimensions | |
| Weight | 40 g |
| Width | 54 mm |
| Depth | 60 mm |
| Height | 20 mm |
| Packaging content | |
| Manual | Yes |
| Cables included | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Video | |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| 3D | Yes |
| Bandwidth | 225 MHz |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, RoHS2 |
| Indication | |
| LED indicators | Yes |
| Technical details | |
| Housing material | Plastic |
| Dolby technologies | DTS, DTS-HD Master Audio, Dolby TrueHD |
| Video out | 2x HDMI |
| Plug and Play | Yes |
| Maximum operating distance | 15 m |
| HDMI version | 1.3b |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
