Description

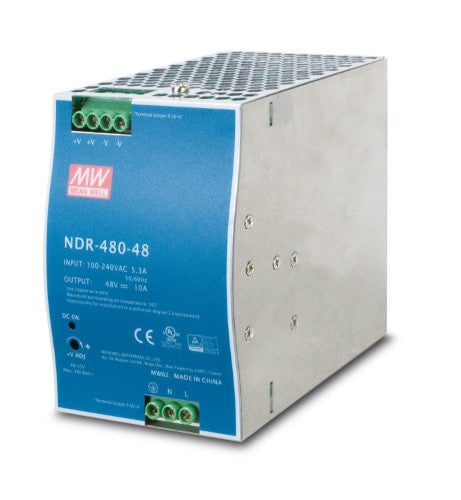

DC Single Output Industrial DIN Rail Power Supply Units
PLANET has released a series of DC single output industrial DIN rail power supply units to make sure that industrial Ethernet devices, specially designed for the harsh working environment, get DC voltage power easily.
PLANET DC single output industrial DIN rail power supply units accept universal 100-240V AC input voltage and provide 48V DC power output with various watt values. Its power supply units are designed in compact size and can be installed on DIN rail TS-35 / 7.5 or 15. It is an ideal and convenient DC power feeding solution for Industrial equipment under heavy Industrial environments.
Stable Performance under Difficult Environments
PLANET DC single output industrial DIN rail power supply units come with such protection features as short circuit, overload, over voltage and over temperature for the stable operation of industrial Ethernet equipment. It uses the free air convection cooling system to prevent operating temperature from rising. Being able to operate under the temperature range from -20 to 70 degrees C (maximum), the DC single output industrial DIN rail power supply units can be placed in almost any difficult environments.
Key Features
- Universal AC input full operation
- Built-in active PFC function
- Protection features: short circuit, overload, over voltage and over temperature
- Cooling by free air convection
- DIN rail TS-35/7.5 or 15 installation
- UL 508 (industrial control equipment) approved
- EN61000-6-2 (EN50082-2) industrial immunity leve
- 100% full load burn-in tes
Description
Compact Size with more Practicability and ConveniencePLANET has released a series of DC single output industrial DIN rail power supply units to make sure that industrial Ethernet devices, specially designed for the harsh working environment, get DC voltage power easily.
PLANET DC single output industrial DIN rail power supply units accept universal 100-240V AC input voltage and provide 48V DC power output with various watt values. Its power supply units are designed in compact size and can be installed on DIN rail TS-35 / 7.5 or 15. It is an ideal and convenient DC power feeding solution for Industrial equipment under heavy Industrial environments.
Stable Performance under Difficult Environments
PLANET DC single output industrial DIN rail power supply units come with such protection features as short circuit, overload, over voltage and over temperature for the stable operation of industrial Ethernet equipment. It uses the free air convection cooling system to prevent operating temperature from rising. Being able to operate under the temperature range from -20 to 70 degrees C (maximum), the DC single output industrial DIN rail power supply units can be placed in almost any difficult environments.
Specifications
| Cooling | |
|---|---|
| Cooling type | Passive |
| Performance | |
| On/off switch | No |
| Safety | Ul508, TUV EN60950-1 |
| Harmonized System (HS) code | 84733020 |
| Design | |
| Safety | Ul508, TUV EN60950-1 |
| Product colour | Blue, Grey |
| On/off switch | No |
| Cooling type | Passive |
| Power | |
| Total power | 480 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 4.8 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage, Overheating, Overload, Short circuit |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| Output power description | 480W |
| Safety regulation & standards | |
| Safety | Ul508, TUV EN60950-1 |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 125 mm |
| Height | 128 mm |
| Weight | 1.5 kg |
| Certificates | |
| Safety | Ul508, TUV EN60950-1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Output power description | 480W |
| Harmonized System (HS) code | 84733020 |
