Description
IPQ-4018 (CPU), 128MB (RAM), 802.11 a/b/g/n/ac, 2.4 / 5 GHz, 5 x LAN, 1 x USB

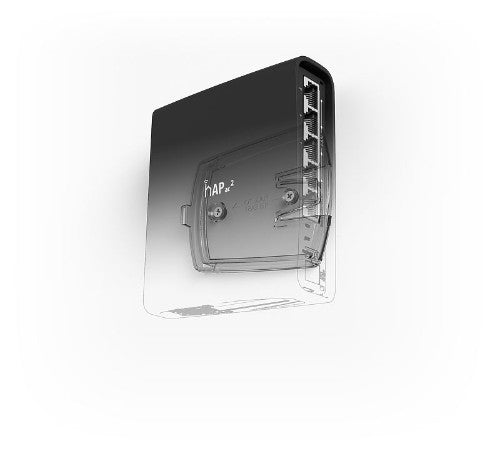

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
Description
The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem, and device supports IPsec hardware acceleration.New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1167 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2412 - 2484, 5150 - 5875 GHz |
| Receiver sensitivity | -100, -96, -94, -80, -78, -75 -73, -70 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1167 Mbit/s |
| Operating system installed | RouterOS |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Wireless LAN features | |
| Frequency band | 2412 - 2484, 5150 - 5875 GHz |
| Network | |
| Internal | No |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Memory | |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2412 - 2484, 5150 - 5875 GHz |
| Receiver sensitivity | -100, -96, -94, -80, -78, -75 -73, -70 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Operating system installed | RouterOS |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Security | |
| Security algorithms | IPSec |
| Ports & interfaces | |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| DC-in jack | Yes |
| Power | |
| Power consumption (max) | 15 W |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 - 30 V |
| Design | |
| Placement | Table, Wall |
| Product colour | Black |
| Internal | No |
| Antenna | |
| Antenna gain level (max) | 2.5 dBi |
| Technical details | |
| Receiver sensitivity | -100, -96, -94, -80, -78, -75 -73, -70 |
| Harmonized System (HS) code | 85176990 |
| Processor | |
| Built-in processor | Yes |
| Weight & dimensions | |
| Width | 34 mm |
| Depth | 119 mm |
| Height | 98 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | -40 - 50% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
