Description
ARM 32bit, 98DX3236, SFP ports x 20, SFP+ ports x 4

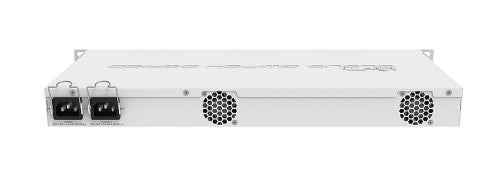

The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.
Description

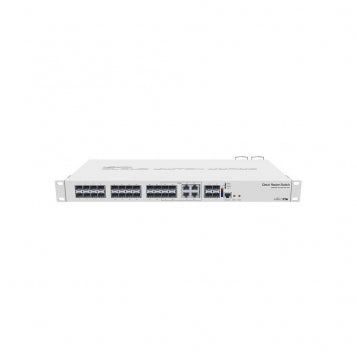

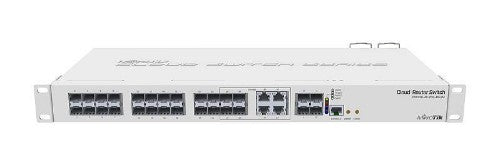

The CRS328-4C-20S-4S+RM is a 28 independent port switch with a combo group. This device has twenty SFP ports, four SFP+ ports for 10G modules and four combo ports, where you can choose to use SFP or RJ45 ports from the combo group. These ports can also be software selected, so if you have plugged in all eight cables, you can use scripting, to decide which four combo ports will be active.The device comes in a 1U rackmount case with two 100-240 V power supplies with failover functionality. A RJ45 console port is available for management and debugging, and a mode button can be customised to execute any RouterOS commands.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS.
Specifications
| Network | |
|---|---|
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3ad |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Processor frequency | 800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP module slots quantity | 20 |
| SFP+ module slots quantity | 4 |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| Data transmission | |
| Jumbo frames | 10218 |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 95.2 Mpps |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Design | |
| Form factor | 1U |
| Product colour | White |
| LED indicators | Yes |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 800 MHz |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 43 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 443 mm |
| Depth | 44 mm |
| Height | 200 mm |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | AC |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
