Description
1x 10/100 Mbit/s RJ-45, 600 MHz, PoE, 10-30 V, 129x129x34 mm, RouterOS

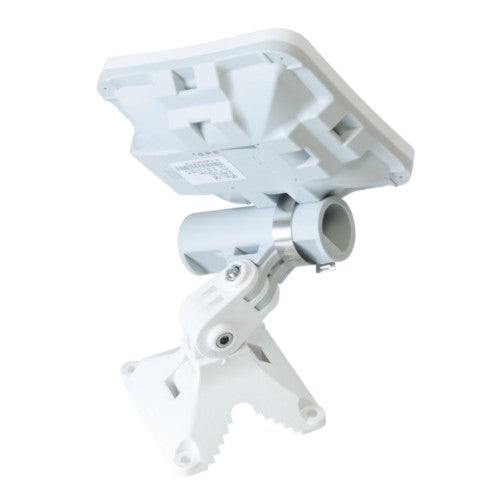

The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).
Description

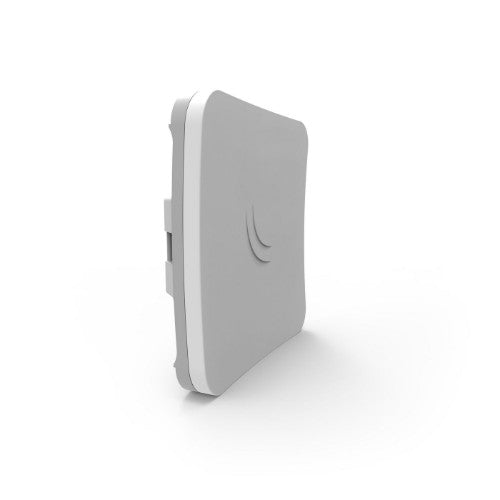

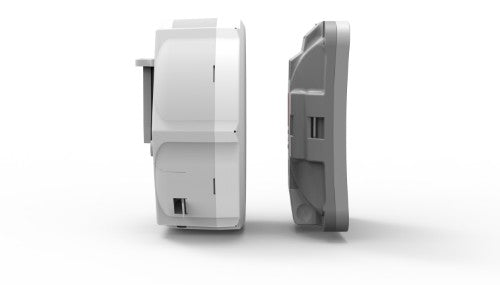

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner (see photos for comparison).The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Performance | |
| 2.4 GHz | No |
| 5 GHz | Yes |
| Receiver sensitivity | 6MBit/s 25 dBm -96 54MBit/s20 -80 MCS0 25 -96 MCS7 19 -75 |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Operating system installed | RouterOS |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Network | |
| Internal | No |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Features | |
| 2.4 GHz | No |
| 5 GHz | Yes |
| Receiver sensitivity | 6MBit/s 25 dBm -96 54MBit/s20 -80 MCS0 25 -96 MCS7 19 -75 |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Operating system installed | RouterOS |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Security | |
| Security algorithms | Not supported |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 6 W |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 10 - 30 V |
| Design | |
| Product colour | White |
| Internal | No |
| Antenna | |
| Antenna gain level (max) | 16 dBi |
| Technical details | |
| Receiver sensitivity | 6MBit/s 25 dBm -96 54MBit/s20 -80 MCS0 25 -96 MCS7 19 -75 |
| Harmonized System (HS) code | 85176990 |
| Processor | |
| Built-in processor | Yes |
| Weight & dimensions | |
| Width | 129 mm |
| Depth | 129 mm |
| Height | 34 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | -40 - 70% |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
