Description
Low-cost small-size 10dBi 2.4GHz dual chain integrated CPE/Backbone
The SXTsq Lite2 retains a 10 dBi antenna like the SXT Lite2, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.
Description

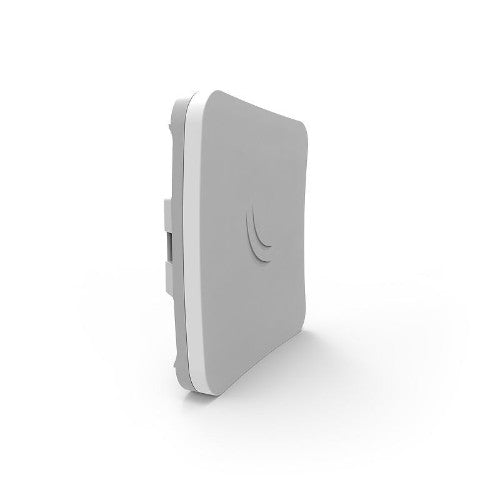

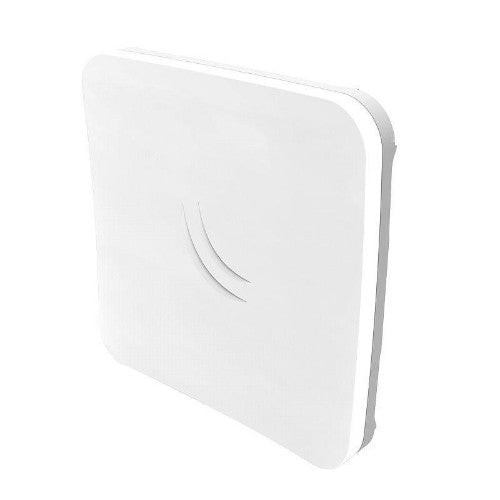

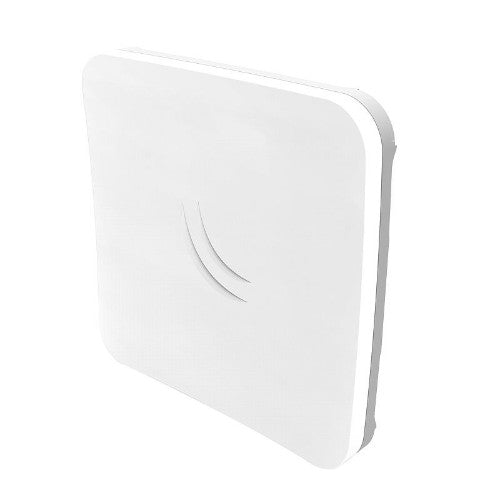

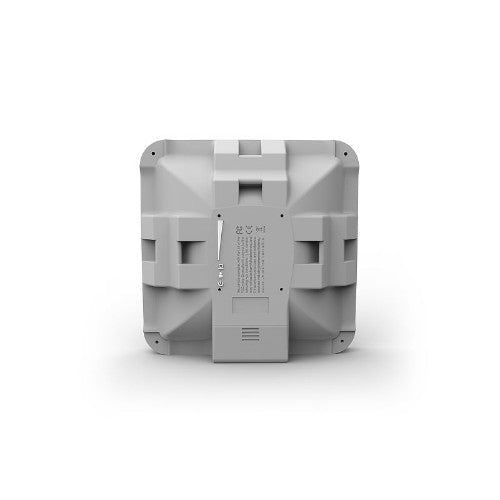

The SXTsq Lite2 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point-to-point links or as a CPE unit. It is compact, weatherproof and easy to mount.The SXTsq Lite2 retains a 10 dBi antenna like the SXT Lite2, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 100 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 100 Mbit/s |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Network | |
| Internal | Yes |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 100 Mbit/s |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 5 W |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 10 - 30 V |
| Design | |
| Product colour | White |
| Internal | Yes |
| Antenna | |
| Antenna features | Integrated antenna |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Processor | |
| Built-in processor | Yes |
| Weight & dimensions | |
| Width | 129 mm |
| Depth | 129 mm |
| Weight | 295 g |
| Height | 34 mm |
| Package width | 255 mm |
| Package depth | 180 mm |
| Package height | 45 mm |
| Package weight | 492 g |
| Packaging data | |
| Package width | 255 mm |
| Package depth | 180 mm |
| Package height | 45 mm |
| Package weight | 492 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
