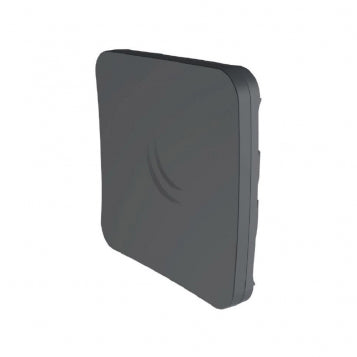

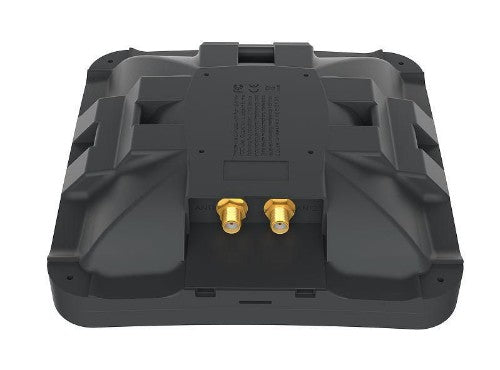

5dBi LTE antenna with 2 x SMA connectors
Description
The mANT LTE is an omnidirectional antenna specifically designed for LTE frequencies. It is an excellent companion to our LTE devices, such as the wAP LTE and LtAP series. The antenna has a 5 dBi gain, improving your connection in the areas with inadequate LTE service coverage, allowing you to increase your connection speed.
Specifications
| Performance |
|---|
| Antenna gain level (max) |
5 dBi |
| Frequency band |
0.699 - 2.690 GHz |
| Features |
|---|
| Connector gender |
Female/Female |
| Antenna gain level (max) |
5 dBi |
| Frequency band |
0.699 - 2.690 GHz |
| Antenna type |
Omni-directional antenna |
| Antenna connector type |
SMA |
| Technical details |
|---|
| Antenna gain level (max) |
5 dBi |
| Frequency band |
0.699 - 2.690 GHz |
| Antenna type |
Omni-directional antenna |
| Antenna connector type |
SMA |
| Harmonized System (HS) code |
85177100 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 70 °C |
| Weight & dimensions |
|---|
| Width |
129 mm |
| Depth |
129 mm |
| Height |
34 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85177100 |
