Description
5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, support for IPsec hardware encryption and The Dude server package
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Description

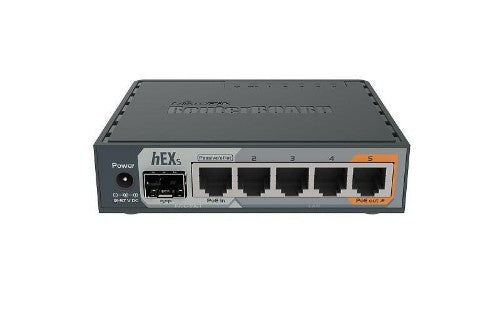

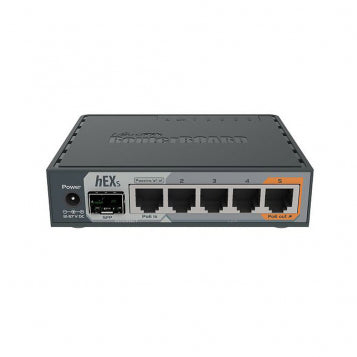

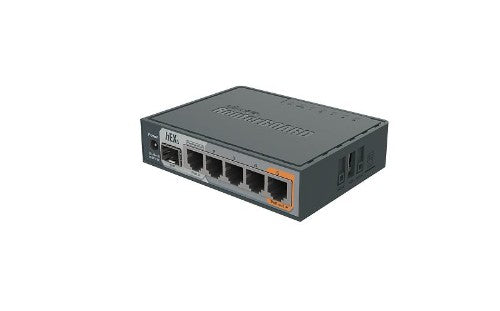

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.
IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 256 MB |
| Performance | |
| Internal memory | 256 MB |
| WAN connection | |
| Ethernet WAN | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 1 |
| Installed SFP modules quantity | 1 |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| DC-in jack | Yes |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 85176990 |
| Features | |
| Internal memory | 256 MB |
| Design | |
| Product colour | Black |
| Antenna | |
| Antenna type | Not supported |
| Power | |
| Power source type | DC |
| Power consumption (typical) | 11 W |
| Weight & dimensions | |
| Width | 113 mm |
| Depth | 89 mm |
| Height | 28 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
