Description

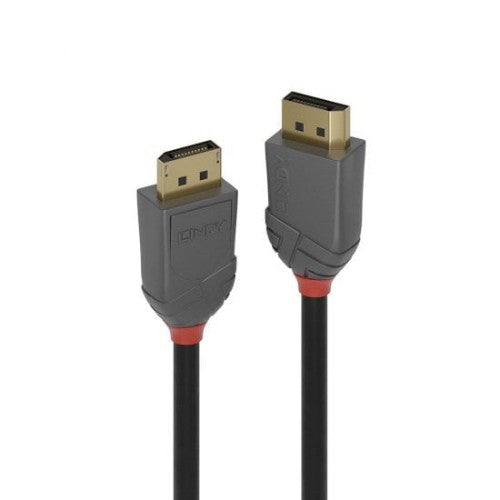

5m DisplayPort 1.4 Cable, Anthra Line
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@120Hz 4:2:2 8bit and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.
Key Features
- Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
- Supports UHD resolutions up to 4K 4096x2160@120Hz 4:2:2 8bit
- Robust ABS housing 24K gold plated connectors and contacts
- Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
- DisplayPort 1.2, 4K, 3D, 21.6Gbps, 10 year warranty
Description
From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@120Hz 4:2:2 8bit and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.
Specifications
| Features | |
|---|---|
| Cable shielding | Copper |
| Product colour | Black, Grey |
| Cable length | 5 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Tinned copper |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| DisplayPort version | 1.2 |
| Data transfer rate | 21.6 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| Plug and Play | Yes |
| Certification | RoHS, REACH, UL |
| Maximum refresh rate | 120 Hz |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Colour sampling | 4:2:2 |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Contact material | Phosphor bronze |
| Connector material | Gold |
| Bend radius (min) | 5.84 cm |
| Cable type | Round cable |
| Nominal attenuation | 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 80 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Packaging data | |
| Cable diameter | 7.3 mm |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Connector 1 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Connector 2 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Weight & dimensions | |
| Cable diameter | 7.3 mm |
| Packaging content | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
