Description
5x 10/100/1000 Mbit/s RJ-45, 1x SFP, 800 MHz, 128 MB RAM, 16 MB flash, PoE, 12-57 V
It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.
The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.
Description

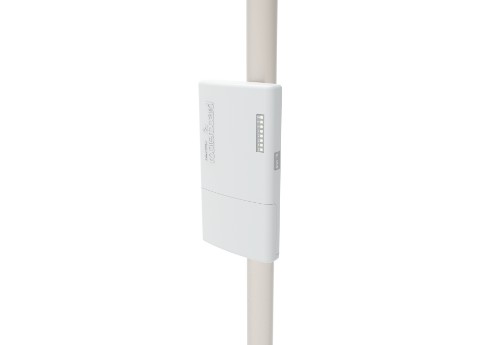

The PowerBox Pro is an outdoor five gigabit ethernet port router with PoE output on four ports. Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.It also supports passive or standard 802.3at/af PoE input/output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power 802.3at and af mode B compatible devices, if 48-57 input voltage is used.
The device has a SFP port for adding optical fiber connectivity. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Memory | |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Performance | |
| Processor cores | 1 |
| Storage media | Flash |
| Voltage monitoring | Yes |
| License level | 4 |
| Operating system installed | RouterOS |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 5 |
| DC-in jack | Yes |
| Technical details | |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| LED indicators | Yes |
| Product colour | White |
| Harmonized System (HS) code | 85176990 |
| Features | |
| Processor cores | 1 |
| Storage media | Flash |
| Voltage monitoring | Yes |
| License level | 4 |
| Operating system installed | RouterOS |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Design | |
| LED indicators | Yes |
| Product colour | White |
| Power | |
| Power source type | DC, PoE |
| Power supply | 9 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 52 mm |
| Height | 225 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
