Description

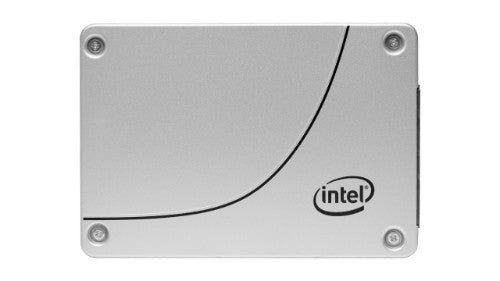

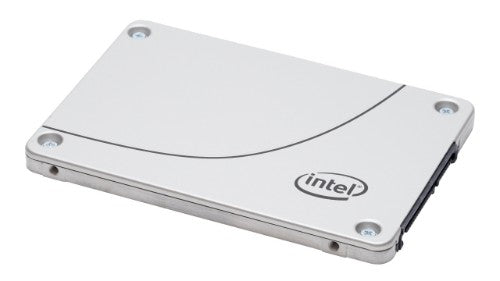

480GB, 2.5", Serial ATA III, 3D2 TLC
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Description
Enhanced Power Loss Data ProtectionEnhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Specifications
| Hard drive | |
|---|---|
| SSD capacity | 480 GB |
| Memory type | TLC 3D NAND |
| Performance | |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel High Endurance Technology (HET) | No |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| SSD ARK ID | 134919 |
| NVMe | No |
| NAND flash type | TLC (Triple Level Cell) |
| End-to-End Data Protection | Yes |
| SSD capacity | 480 GB |
| Security algorithms | 256-bit AES |
| Read speed | 560 MB/s |
| Write speed | 510 MB/s |
| Memory type | TLC 3D NAND |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| SSD temperature monitoring | Yes |
| Random write (100% span) | 44500 IOPS |
| Random read (100% span) | 96000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 37 µs |
| Read latency | 36 µs |
| Hardware encryption | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| Data transfer rate | 6 Gbit/s |
| Data transmission | |
| Read speed | 560 MB/s |
| Write speed | 510 MB/s |
| Random write (100% span) | 44500 IOPS |
| Random read (100% span) | 96000 IOPS |
| Write latency | 37 µs |
| Read latency | 36 µs |
| Data transfer rate | 6 Gbit/s |
| Security | |
| Security algorithms | 256-bit AES |
| Endurance | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Design | |
| Component for | Server/workstation |
| Product colour | Silver |
| SSD form factor | 2.5" |
| Market segment | Server |
| Product family | Data center SSD |
| Product series | Intel® SSD D3-S4610 Series |
| Product codename | Youngsville Refresh |
| Features | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| SSD ARK ID | 134919 |
| NVMe | No |
| NAND flash type | TLC (Triple Level Cell) |
| End-to-End Data Protection | Yes |
| SSD capacity | 480 GB |
| Security algorithms | 256-bit AES |
| Read speed | 560 MB/s |
| Write speed | 510 MB/s |
| Memory type | TLC 3D NAND |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| SSD temperature monitoring | Yes |
| Random write (100% span) | 44500 IOPS |
| Random read (100% span) | 96000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 37 µs |
| Read latency | 36 µs |
| Hardware encryption | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| Data transfer rate | 6 Gbit/s |
| SSD form factor | 2.5" |
| Market segment | Server |
| Harmonized System (HS) code | 84717070 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G162706 |
| Temperature monitoring and logging | Yes |
| Power | |
| Power consumption (idle) | 1 W |
| Brand-specific features | |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel High Endurance Technology (HET) | No |
| Intel Smart Response Technology version | 0.00 |
| Product family | Data center SSD |
| Product series | Intel® SSD D3-S4610 Series |
| Product codename | Youngsville Refresh |
| Intel Rapid Start Technology version | 0.00 |
| Intel® Remote Secure Erase | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating shock | 1000 G |
| Non-operating shock | 1000 G |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Maximum operating temperature | 70 °C |
| Operating / non-operating shock | 1000 G/0.5 msec |
| Technical details | |
| Interface | Serial ATA III |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating shock | 1000 G |
| Non-operating shock | 1000 G |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| SSD temperature monitoring | Yes |
| Intel High Endurance Technology (HET) | No |
| Hardware encryption | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| Product colour | Silver |
| Power consumption (active) | 3.1 W |
| SSD form factor | 2.5" |
| Market segment | Server |
| Intel Smart Response Technology version | 0.00 |
| Intel Rapid Start Technology version | 0.00 |
| Processor family | Intel SSD D3 |
| Status | Launched |
| SSD shock | 1000 G/0.5 msec |
| SSD power consumption (idle) | 1.0W |
| SSD power consumption (active) | 3.1W |
| SSD hardware encryption | AES 256 bit |
| SSD endurance rating | 3.0 PBW |
| Sequential writing speed | 510 MB/s |
| Sequential reading | 560 MB/s |
| Launch date | Q3'18 |
| Drive capacity | 480 GB |
| Last change | 63903513 |
| Remote Secure Erase (RSE) technology version | 0.00 |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
| Other features | |
| Processor family | Intel SSD D3 |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Product colour | Silver |
| Power consumption (active) | 3.1 W |
| Status | Launched |
| SSD shock | 1000 G/0.5 msec |
| SSD power consumption (idle) | 1.0W |
| SSD power consumption (active) | 3.1W |
| SSD hardware encryption | AES 256 bit |
| SSD endurance rating | 3.0 PBW |
| Sequential writing speed | 510 MB/s |
| Sequential reading | 560 MB/s |
| Launch date | Q3'18 |
| Drive capacity | 480 GB |
| Last change | 63903513 |
| Product family | Data center SSD |
| Product series | Intel® SSD D3-S4610 Series |
| Product codename | Youngsville Refresh |
| Intel Rapid Start Technology version | 0.00 |
| Remote Secure Erase (RSE) technology version | 0.00 |
