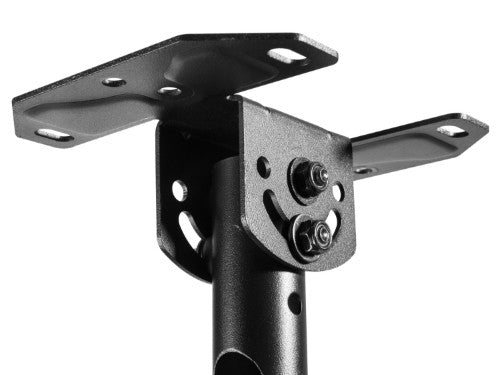

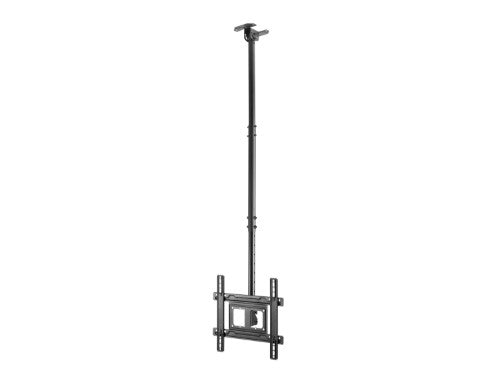

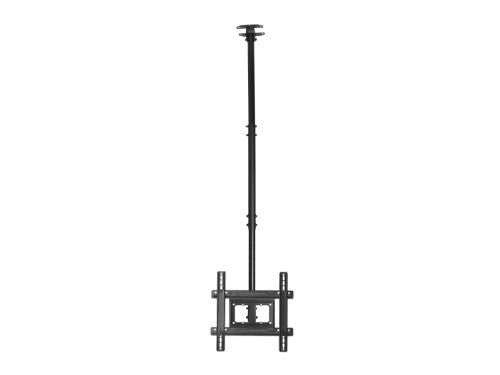

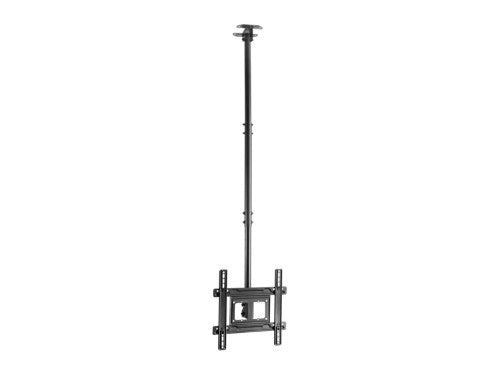

Ceiling Mount TV Bracket
Key Features
- "Max. Load Capacity: 50Kg
- Max. VESA: 400x400
- VESA standards compliant

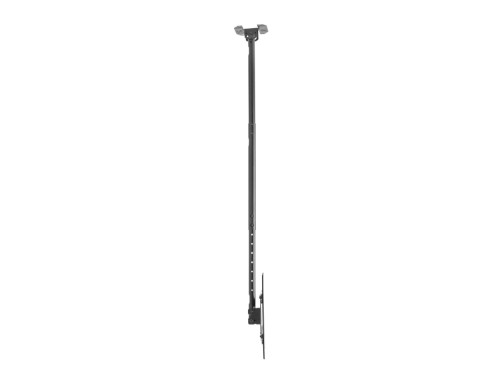

- Telescopic height adjustment for optimum visibility
- Freely angling and swiveling for different viewing angles
- Removable VESA attachment for easy installation

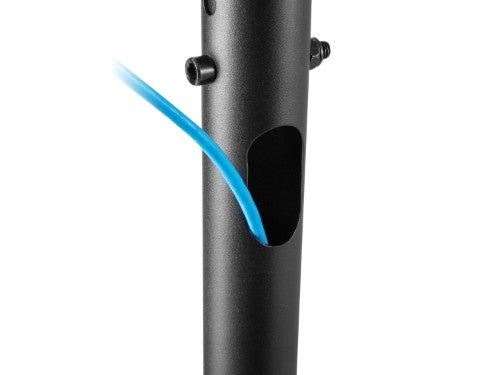

- Integrated cable management

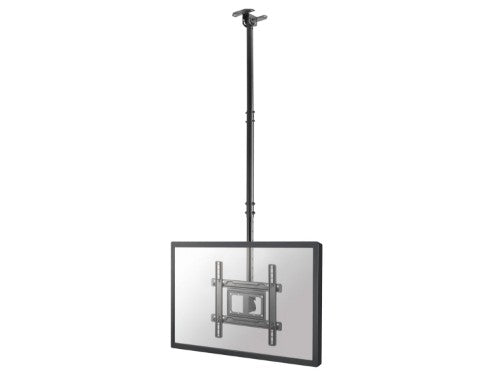

- Portrait or Landscape viewing : one solution fits any installation"
Description
The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens
Specifications
| Mounting |
|---|
| Minimum screen size |
81.3 cm (32") |
| Maximum weight capacity |
50 kg |
| Panel mounting interface |
100 x 100,100 x 200,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300 |
| Mounting type |
Ceiling |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
400 x 400 mm |
| Maximum screen size |
177.8 cm (70") |
| Ergonomics |
|---|
| Swivel angle range |
-30 - 30° |
| Tilt angle range |
5 - 25° |
| Distance to the wall (min) |
70.7 cm |
| Distance to the wall (max) |
157.7 cm |
| Cable management |
Yes |
| Design |
|---|
| Housing material |
Plastic, Steel |
| Certification |
CE, RoHS |
| Product colour |
Black |

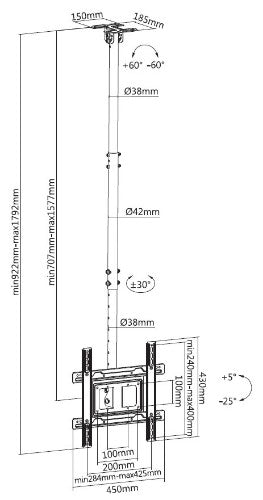

| Weight & dimensions |
|---|
| Width |
185 mm |
| Depth |
450 mm |
| Height |
1792 mm |
| Weight |
5.06 kg |
| Package dimensions (WxDxH) |
265 x 642 x 77 mm |
| Package width |
265 mm |
| Package depth |
642 mm |
| Package height |
77 mm |
| Package weight |
5.58 kg |
| Packaging data |
|---|
| Package width |
265 mm |
| Package depth |
642 mm |
| Package height |
77 mm |
| Package weight |
5.58 kg |
| Package dimensions (WxDxH) |
265 x 642 x 77 mm |
| Packaging content |
|---|
| Screws included |
Yes |
| User guide |
Yes |
| Technical details |
|---|
| Mounting type |
Ceiling |
| Distance to the wall (min) |
70.7 cm |
| Distance to the wall (max) |
157.7 cm |
| Package dimensions (WxDxH) |
265 x 642 x 77 mm |
| Certificates |
|---|
| Certification |
CE, RoHS |
| Other features |
|---|
| Country of origin |
China |
| Logistics data |
|---|
| Master (outer) case width |
280 mm |
| Master (outer) case length |
660 mm |
| Master (outer) case height |
255 mm |
| Master (outer) case gross weight |
17.2 kg |
| Products per master (outer) case |
3 pc(s) |
| Harmonized System (HS) code |
85299097 |
