Description
Eclipse 5145 - black, RS232, Installation & User´s Guide
Description

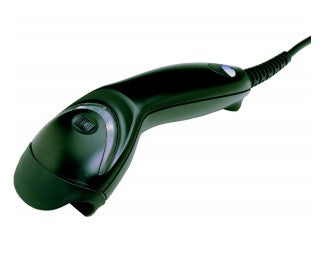

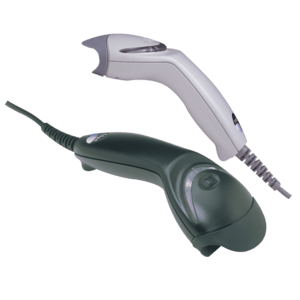

Eclipse is a single-line, hand-held laser scanner. Equipped with Honeywell’s patented CodeGate technology.Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | GS1-128 (UCC/EAN-128) |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Sensor type | Laser |
| Scanner type | 1D |
| Read rate (max) | 72 reads/s |
| Pitch reading angle | -68 - 68° |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232 |
| Performance | |
| Product colour | Black |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Design | |
| Type | Handheld bar code reader |
| Product colour | Black |
| Weight & dimensions | |
| Width | 63 mm |
| Depth | 169 mm |
| Height | 51 mm |
| Weight | 100 g |
| Technical details | |
| Type | Handheld bar code reader |
| Product colour | Black |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Light levels (direct sunlight) | 0 - 4842 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
