Description
Voyager 1202g BF Battery-Free - KIT
Specifications
Battery-Free Wireless Technology: Fully charges in less than 35 seconds with a wall power adapter, and provides short-term power for at least 100 wireless scans.1 By eliminating the battery, a common maintenance headache is removed, and the scanner is lighter and more environmentally friendly.
Bluetooth Wireless Technology: Grants wireless freedom of movement up to 10 meters (33 feet) from the base, depending on user environment.
Reliable Bar Code Reading: Increase throughput and reduce the potential for hand-keyed errors by quickly scanning a variety of 1D bar codes, including those that are damaged or poor quality.
Automatic Interface Configuration: Supports all popular interfaces in one device, replacing the time-consuming process of scanning programming bar codes with automatic interface detection and configuration.
Paging Functionality: Simply press the button on the base to locate your lost scanner; Voyager responds with a series of beeps and blinking lights on its indicator panel.
1202G-2USB-5BF USB Kit:

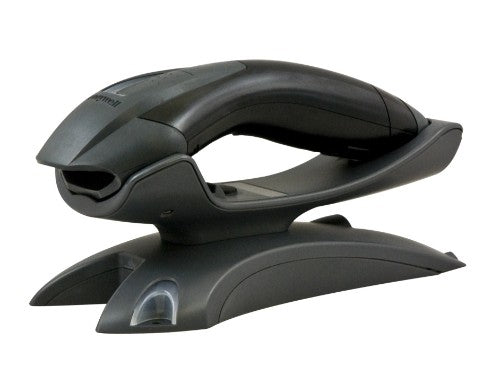

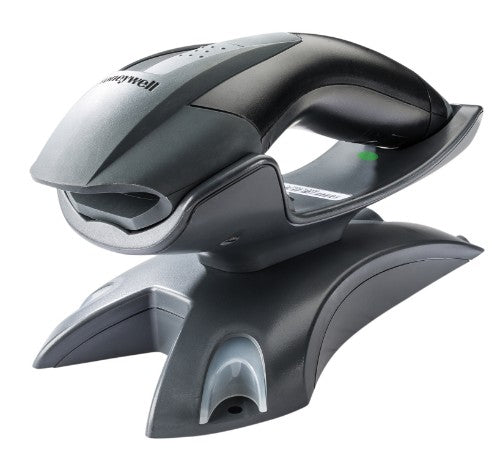

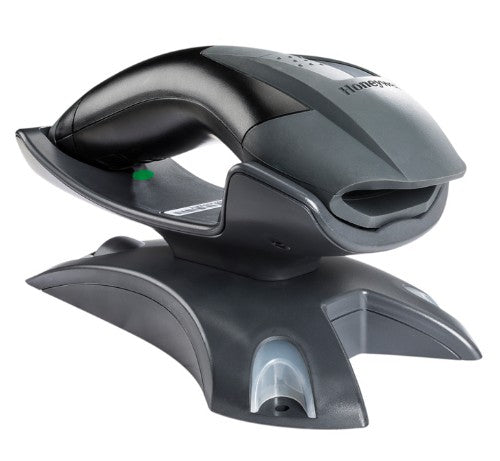

Black BT 10m battery free scanner (1202g-2-BF), charge & communication base (CCB00-010BT-01N-BF), USB Type A 3m straight cable (CBL-500-300-S00), and documentation. Power Supply PS-05-1000W-X can be ordered separately B USB Kit
Description

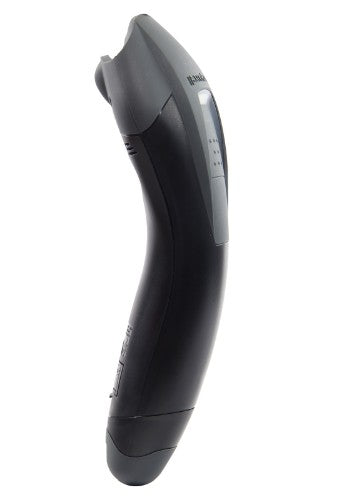

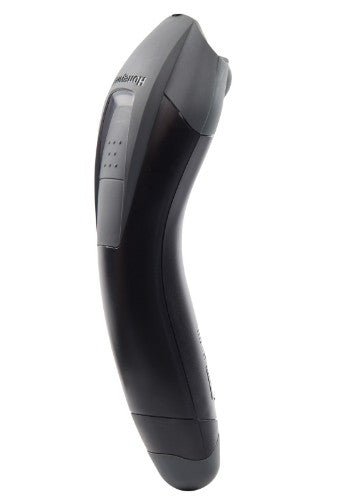

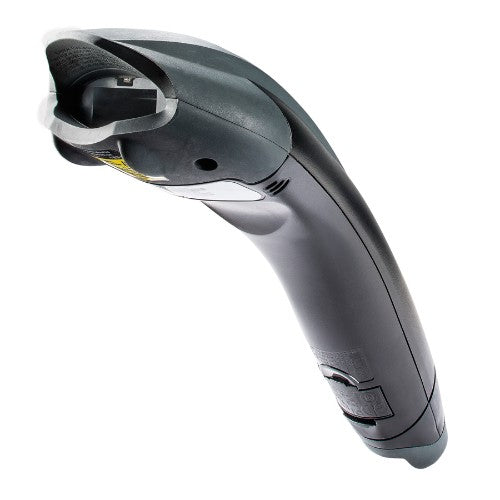

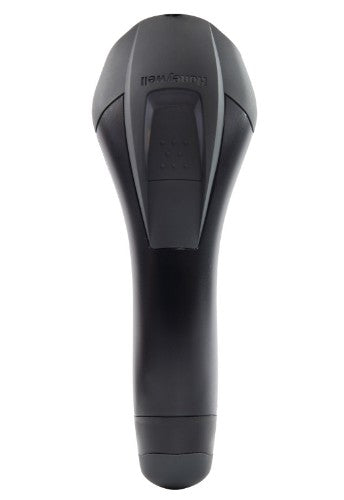

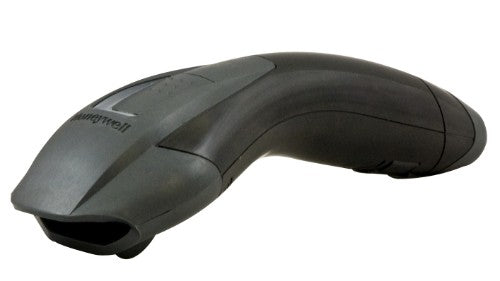

Honeywell’s Voyager1202g-bf single-line laser scanner incorporates breakthrough battery-free technology, offering the freedom of Bluetooth wireless technology without the maintenance hassle or long recharge time associated with traditional batteries. Like all other Voyager scanners, the 1202g-bf delivers aggressive linear bar code scanning performance—even on poor quality or damaged bar codesSpecifications
Battery-Free Wireless Technology: Fully charges in less than 35 seconds with a wall power adapter, and provides short-term power for at least 100 wireless scans.1 By eliminating the battery, a common maintenance headache is removed, and the scanner is lighter and more environmentally friendly.
Bluetooth Wireless Technology: Grants wireless freedom of movement up to 10 meters (33 feet) from the base, depending on user environment.
Reliable Bar Code Reading: Increase throughput and reduce the potential for hand-keyed errors by quickly scanning a variety of 1D bar codes, including those that are damaged or poor quality.
Automatic Interface Configuration: Supports all popular interfaces in one device, replacing the time-consuming process of scanning programming bar codes with automatic interface detection and configuration.
Paging Functionality: Simply press the button on the base to locate your lost scanner; Voyager responds with a series of beeps and blinking lights on its indicator panel.
1202G-2USB-5BF USB Kit:
Black BT 10m battery free scanner (1202g-2-BF), charge & communication base (CCB00-010BT-01N-BF), USB Type A 3m straight cable (CBL-500-300-S00), and documentation. Power Supply PS-05-1000W-X can be ordered separately B USB Kit
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Sensor type | Laser |
| Scanner type | 1D |
| Pitch reading angle | 60 - 60° |
| Ports & interfaces | |
| Data transfer rate | 3 Mbit/s |
| Wireless range | 10 m |
| Connectivity technology | Wireless |
| Bluetooth version | 2.1+EDR |
| Operating frequency | 2.4 - 2.5 MHz |
| Standard interfaces | Bluetooth |
| Performance | |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Design | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Power | |
| Power source type | Battery |
| Battery life | 12 h |
| Charging time | 4 h |
| Number of reads per charge | 45000 |
| Input voltage | 5 V |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 1800 mAh |
| Weight & dimensions | |
| Base dimensions (WxDxH) | 200 x 67 x 97 mm |
| Width | 66 mm |
| Depth | 180 mm |
| Height | 92 mm |
| Weight | 180 g |
| Base weight | 185 g |
| Technical details | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Packaging data | |
| Charging base | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -5 - 35 °C |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| Charging base | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
