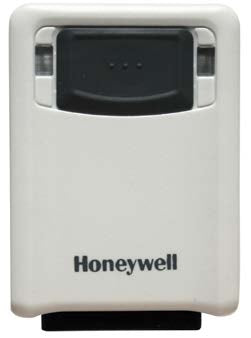

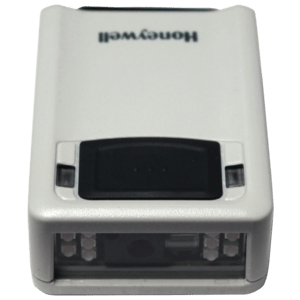

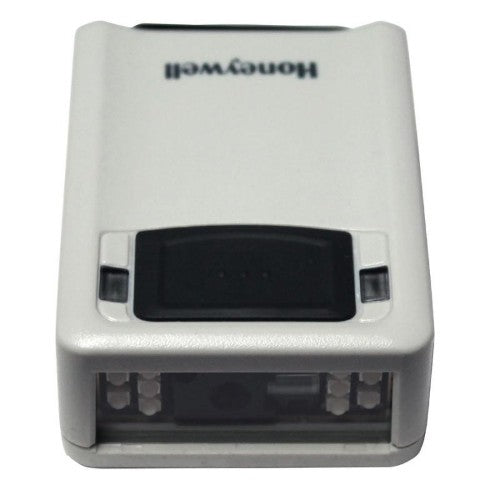

Honeywell 3320G-4USB-0 barcode reader Fixed bar code reader 1D/2D Photo diode Ivory

3320G-4USB-0, 1D, PDF417, 2D, USB, 5VDC ± 0.25V, 838 x 640 pixel, IP53, ±45°, ±65°

Description

The Honeywell Vuquest3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner’s sleek and elegant design also blends seamlessly in retail environments.

Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners.

Specifications

Scanning
Type	Fixed bar code reader
Linear (1D) barcodes supported	PDF417
Optical sensor resolution	838 pixels
Yaw reading angle	-65 - 65°
Sensor type	Photo diode
Scanner type	1D/2D
Pitch reading angle	-45 - 45°
Light levels (direct sunlight)	0 - 100000 lx
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	RS-232, USB, Keyboard wedge
Performance
LED indicators	Yes
International Protection (IP) code	IP53
Product colour	Ivory
Light levels (direct sunlight)	0 - 100000 lx
Design
Type	Fixed bar code reader
LED indicators	Yes
International Protection (IP) code	IP53
Product colour	Ivory
Power
Power consumption	450 mA
Power source type	DC
Power consumption (typical)	2.3 W
Power consumption (standby)	0.45 W
Input voltage	5 V
Weight & dimensions
Width	51 mm
Depth	73 mm
Height	26 mm
Weight	77 g
Technical details
Type	Fixed bar code reader
LED indicators	Yes
International Protection (IP) code	IP53
Product colour	Ivory
Harmonized System (HS) code	84716070
Packaging data
Cables included	USB
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Light levels (direct sunlight)	0 - 100000 lx
Packaging content
Cables included	USB
Logistics data
Harmonized System (HS) code	84716070
