Description
RS232, KBW, USB, RS485, 0 - 70000 lux, IP42
Outstanding scan performance on poor quality and damaged bar codes maintains productivity by providing a worry-free linear scanning solution that minimizes the need for manual data entry
Class-leading presentation scanning increases throughput by providing object detection and automatic in-stand detection and configuration
Superior out-of-box experience simplifies set up with tool-free stand assembly; automatic in-stand detection and configuration; and automatic interface detection and configuration
Contemporary, ergonomic design ensures operator comfort and productivity by incorporating an integrated finger groove in a sleek, lightweight industrial design that fits well in most hands
CodeGate® technology enables users to ensure that the desired bar code is scanned before transmitting data, making the scanner ideal for use in menu scanning applications
Multi-interface design minimizes costs by delivering support for USB, keyboard wedge, and RS232 interfaces in a single scanner
Description

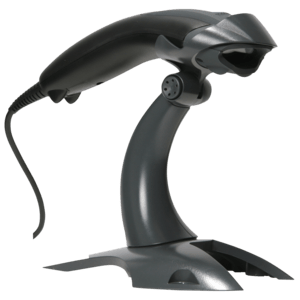

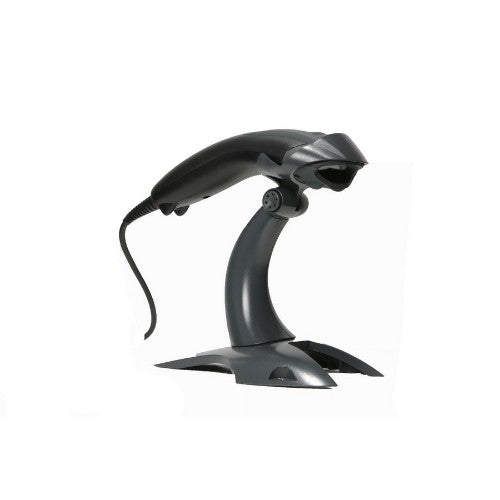

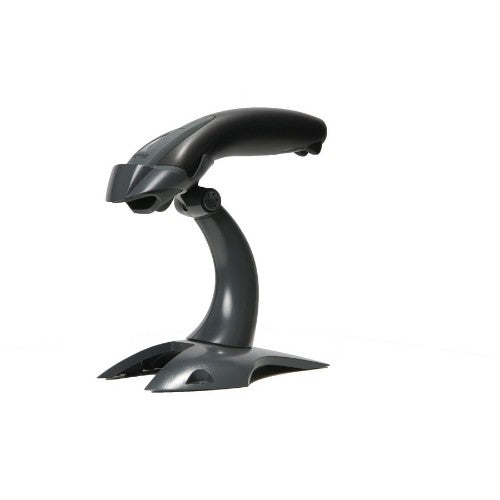

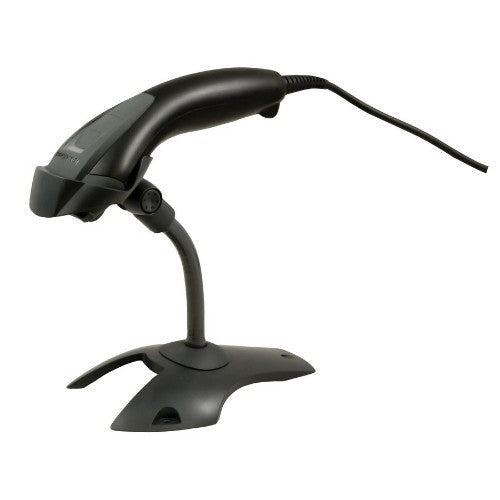

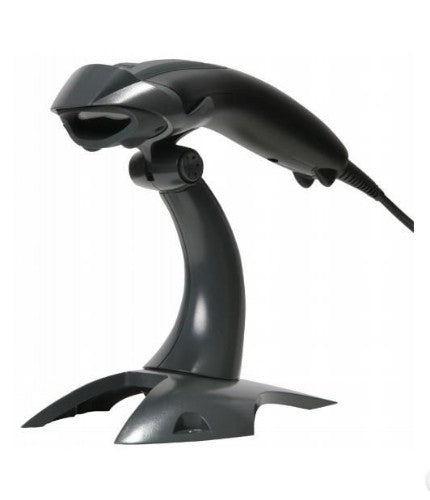

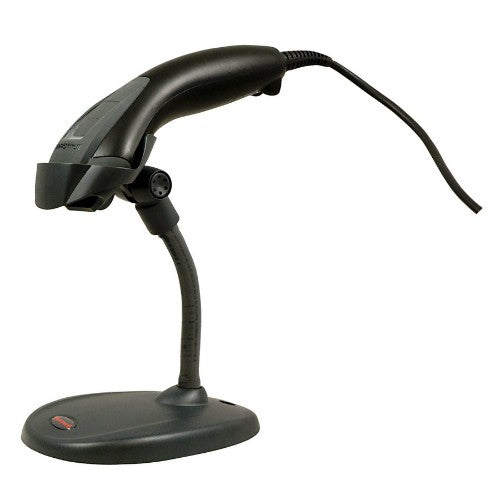

Built on the platform of the world’s best-selling single-line laser scanner, Honeywell’s Voyager® 1200g delivers aggressive scan performance on virtually all linear bar codes, including poor quality and damaged codes. Updated object detection, and automatic in-stand detection and configuration enable class-leading presentation scanning that maximizes throughput. Superior scan performance matched with a reliable design combine to provide a versatile linear scanning solution.Outstanding scan performance on poor quality and damaged bar codes maintains productivity by providing a worry-free linear scanning solution that minimizes the need for manual data entry
Class-leading presentation scanning increases throughput by providing object detection and automatic in-stand detection and configuration
Superior out-of-box experience simplifies set up with tool-free stand assembly; automatic in-stand detection and configuration; and automatic interface detection and configuration
Contemporary, ergonomic design ensures operator comfort and productivity by incorporating an integrated finger groove in a sleek, lightweight industrial design that fits well in most hands
CodeGate® technology enables users to ensure that the desired bar code is scanned before transmitting data, making the scanner ideal for use in menu scanning applications
Multi-interface design minimizes costs by delivering support for USB, keyboard wedge, and RS232 interfaces in a single scanner
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | GS1-128 (UCC/EAN-128) |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Sensor type | Laser |
| Scanner type | 1D |
| Read rate (max) | 100 reads/s |
| Pitch reading angle | 60 - 60° |
| Light levels (direct sunlight) | 0 - 70000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Performance | |
| LED indicators | Power |
| Housing material | Plastic |
| Product colour | Black |
| Certification | CE DoC |
| Light levels (direct sunlight) | 0 - 70000 lx |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Power |
| Housing material | Plastic |
| Product colour | Black |
| Certification | CE DoC |
| Power | |
| Power source type | USB |
| Power consumption (typical) | 0.7 W |
| Power consumption (standby) | 0.35 W |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 66 mm |
| Height | 97 mm |
| Weight | 125 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Power |
| Housing material | Plastic |
| Shockproof | Yes |
| Product colour | Black |
| Certification | CE DoC |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Light levels (direct sunlight) | 0 - 70000 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Other features | |
| Shockproof | Yes |
