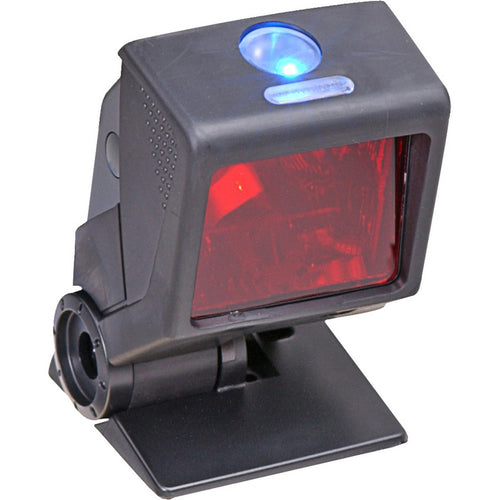

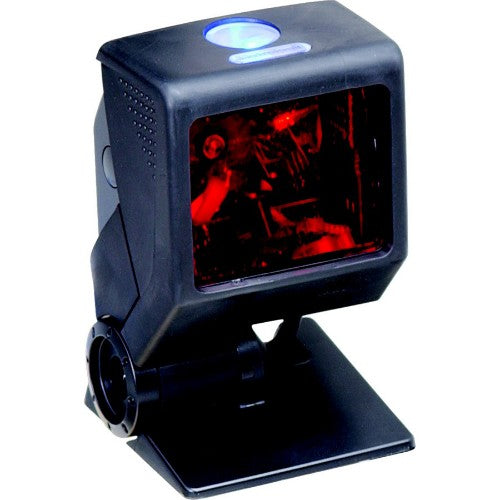

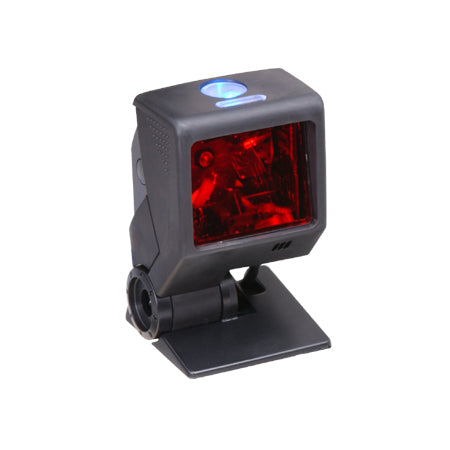

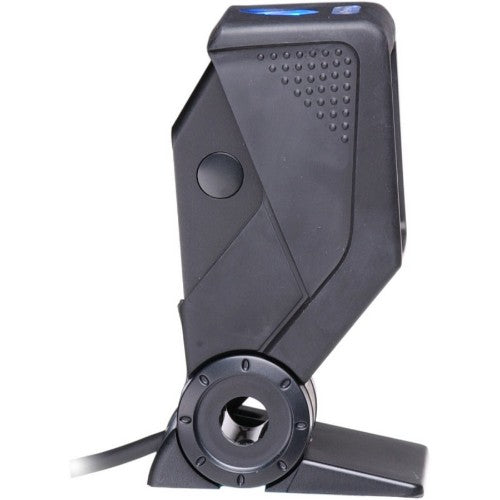

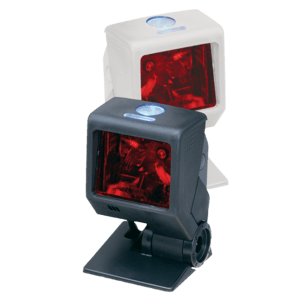

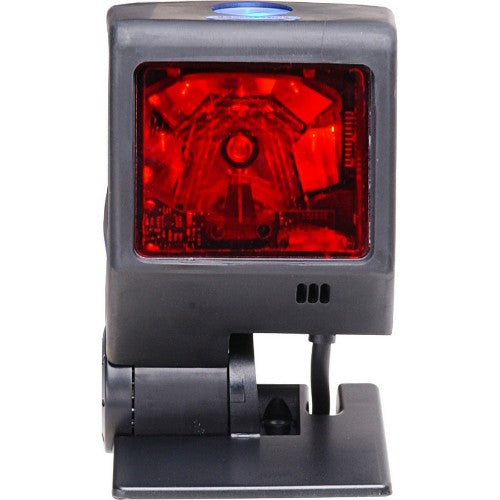

Quantum MS-3580, USB
Description
The MS3580 QuantumT provides retailers with industry-leading omnidirectional scan performance and optional single-line scanning in a compact form factor. Patented CodeGate technology saves time and reduces unwanted scans by offering a single-line mode for scanning menu-style codes. A small footprint and numerous stand options minimize required counter space, increasing available room for merchandise and advertisement displays.
Specifications
| Scanning |
|---|
| Type |
Fixed bar code reader |
| Linear (1D) barcodes supported |
GS1-128 (UCC/EAN-128) |
| 2D (matrix & stacked) barcodes supported |
Not supported |
| Yaw reading angle |
0 - 60° |
| Wavelength |
650 nm |
| Tilt reading angle |
0 - 360° |
| Sensor type |
Laser |
| Pitch reading angle |
0 - 60° |
| Maximum scan width |
27.9 cm |
| Light levels (direct sunlight) |
0 - 4842 lx |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Standard interfaces |
USB |
| Performance |
|---|
| Product colour |
Black |
| Certification |
IEC60825-1, EN60825-1, FCC, ICES, EN55022 |
| Buzzer |
Yes |
| Light levels (direct sunlight) |
0 - 4842 lx |
| Design |
|---|
| Type |
Fixed bar code reader |
| Product colour |
Black |
| Certification |
IEC60825-1, EN60825-1, FCC, ICES, EN55022 |
| Power |
|---|
| Power source type |
AC |
| Power consumption (typical) |
1.4 W |
| Power consumption (standby) |
1.2 W |
| Input voltage |
5 V |
| Weight & dimensions |
|---|
| Width |
67 mm |
| Depth |
66 mm |
| Height |
108 mm |
| Weight |
170 g |
| Technical details |
|---|
| Type |
Fixed bar code reader |
| Product colour |
Black |
| Certification |
IEC60825-1, EN60825-1, FCC, ICES, EN55022 |
| Buzzer |
Yes |
| Harmonized System (HS) code |
84716070 |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating temperature (T-T) |
-20 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Light levels (direct sunlight) |
0 - 4842 lx |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
