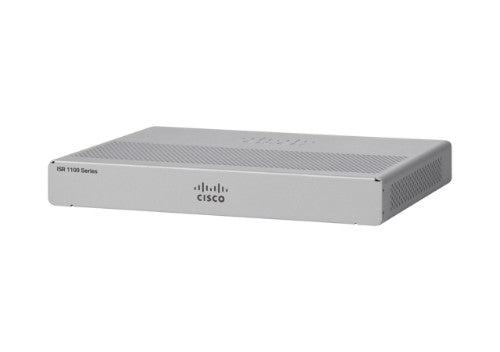

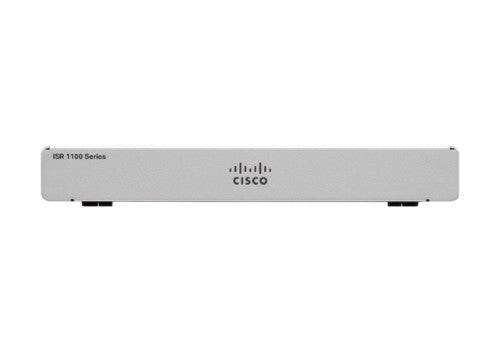

C1101-4P Integrated Services Router with 4-Gigabit Ethernet (GbE) Ports, GE Ethernet WAN Router, Integrated USB 3+, 1-Year Limited Hardware Warranty (C1101-4P)
Key Features
- PORT COUNT: 4-port managed Gigabit Ethernet switch
- CONNECTIVITY: Gigabit WAN port with integrated USB 3.0 console
- SECURITY: Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud
- PERFORMANCE: Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services
- PEACE OF MIND: 1-year limited hardware warranty with 10-day advanced replacement
Description
The Cisco C1101-4P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.
Specifications
| Ethernet LAN features |
|---|
| Ethernet WAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| DSL features |
|---|
| DSL WAN |
No |
| ADSL |
Yes |
| ADSL2 |
Yes |
| VDSL2 |
Yes |
| Mobile network |
|---|
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
Yes |
| Performance |
|---|
| Internal memory |
4000 MB |
| Weight & dimensions |
|---|
| Package width |
254 mm |
| Package weight |
3.08 kg |
| Package height |
177.8 mm |
| Package depth |
333.5 mm |
| WAN connection |
|---|
| Ethernet WAN |
Yes |
| DSL WAN |
No |
| SIM card slot |
No |
| 3G/4G USB modem compatibility |
Yes |
| Network |
|---|
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Security |
|---|
| Security algorithms |
AES, WPA2 |
| Access Control List (ACL) |
Yes |
| Design |
|---|
| Product type |
Tabletop router |
| Country of origin |
China |
| Product colour |
Grey |
| Indication light |
Yes |
| Other features |
|---|
| Internal memory |
4000 MB |
| Features |
|---|
| Internal memory |
4000 MB |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Power source type |
AC |
| Power consumption (typical) |
30 W |
| Output voltage |
12 V |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Storage temperature (T-T) |
0 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 4570 m |
| Packaging data |
|---|
| Package width |
254 mm |
| Package weight |
3.08 kg |
| Package height |
177.8 mm |
| Package depth |
333.5 mm |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85176990 |
