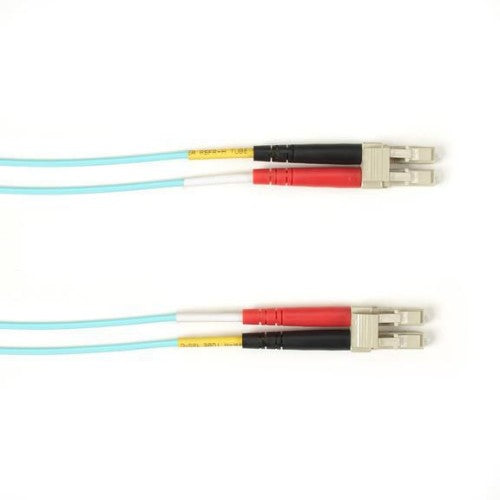

Fibre Optic Multimode OM4 Patch Cables (50-/125-µm), LC-LC, 10m
Key Features
- For use in 10Gbps high speed LAN networks over a 300-m indicative link length at 850 nm (SX) wavelength using a laser launch
- For use in 1 Gbps high speed LAN networks over a 1000-m indicative link length at 850 nm (SX) wavelength using a laser launch
- High speed and legacy networks including Gigabit Ethernet, Fast Ethernet and Ethernet
- Supports video, data and voice services
- Low Smoke Zero Halogen (LSZH) jacket
- 900µm tight buffer
- OM4 fibre conforms to ITU-651, TIA/EIA 492AAAD
- Simplex and duplex assemblies
- Different connector performance range for specific application
Description
Connect high speed and legacy networks like 10/40/100 gigabit ethernet, fast ethernet and ethernet.
Specifications
| Features |
|---|
| Fibre optic type |
OM4 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
10 m |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Product colour |
Aqua colour |
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
10 m |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Weight & dimensions |
|---|
| Cable length |
10 m |
