Description

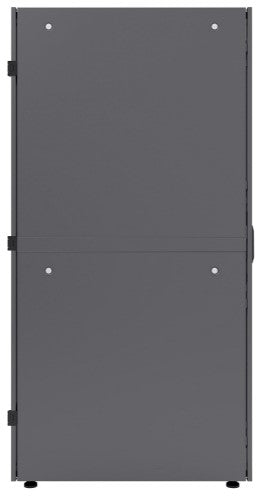

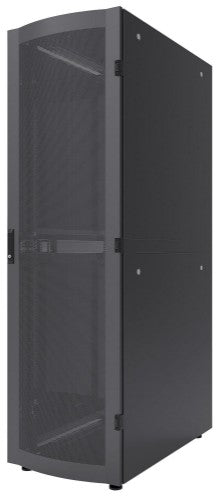

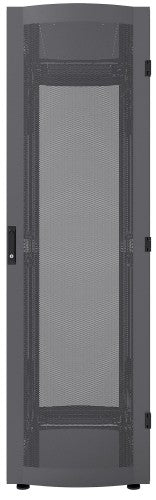

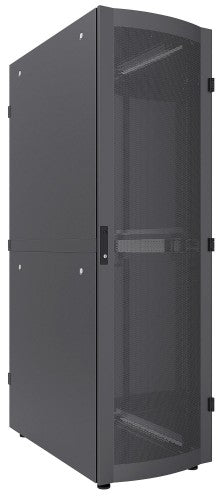

19" Server Cabinet - Free Standing, 42U, 600x1200mm (width x depth), Black, Flatpack, Max 1500kg, Multi-Point Door Lock, One Lock Per Side Panel, Usable Depth 123 to 973mm, IP20 rated, Rack, Steel
Numerous 19″ options are available for housing, all with an installation depth of 1000 mm & 1200 mm. Cabinet heights range from 26 to 47 units in either black (RAL9005) or grey (RAL7035) colour, so there's a solution for every need. The removable side panels and the lockable doors make cabling and component exchange particularly easy. Perforations on front and back provide excellent airflow.
We provide top quality in materials and workmanship, including a cold-rolled steel frame, zinc-plated 19″ mounting rails and antistatic powder coating on all panels.
Key Features
- Ideal for all 19 in. rackmount applications
- Maximum static load of 1500 kg
- Perforated door and ventilation slots provide excellent airflow
- Zinc-plated 19 in. mounting rails
- Antistatic powder coating on all panels
- Panels with up to 2 mm steel thickness
- IP20-rated housing
- Easily removable side and rear panels
- Multi-point door lock
- Two apertures allow cable inlet from top or bottom
- Ships flatpacked
- Three-Year Warranty
Description
Intellinet Network Solutions Server Cabinets offer flexible and comprehensive solutions for your server installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version.Numerous 19″ options are available for housing, all with an installation depth of 1000 mm & 1200 mm. Cabinet heights range from 26 to 47 units in either black (RAL9005) or grey (RAL7035) colour, so there's a solution for every need. The removable side panels and the lockable doors make cabling and component exchange particularly easy. Perforations on front and back provide excellent airflow.
We provide top quality in materials and workmanship, including a cold-rolled steel frame, zinc-plated 19″ mounting rails and antistatic powder coating on all panels.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Key lock | Yes |
| Frame type | Closed |
| Rack capacity | 42U |
| International Protection (IP) code | IP20 |
| Adjustable mounting rails | Yes |
| Removable side panels | Yes |
| Adjustable feet | Yes |
| Front door key lock | Yes |
| Type | Freestanding rack |
| Side panels included | Yes |
| Maximum weight capacity | 1500 kg |
| Material | Steel |
| Product colour | Black |
| Certification | UL, Gost-R |
| Adjustable depth | Yes |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 1200 mm |
| Height | 2057 mm |
| Weight | 121 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 1500 kg |
| Technical details | |
| Type | Freestanding rack |
| Size (imperial) | 48.3 cm (19") |
| Side panels included | Yes |
| Compliance certificates | RoHS |
| Rack capacity | 42U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | UL, Gost-R |
| Packaging content | |
| Side panels included | Yes |
| Material | |
| Material | Steel |
