Description
HDMI switcher 4x1 (4K@60Hz)
Key features include smart EDID management for seamless integration with various display devices, support for Audio Return Channel (ARC), and audio de-embedding capabilities, allowing extraction of audio signals for separate processing. The switcher offers both automatic and manual switching modes, providing flexibility in source selection. Its ultra-slim design facilitates easy installation in diverse environments.
Key Features

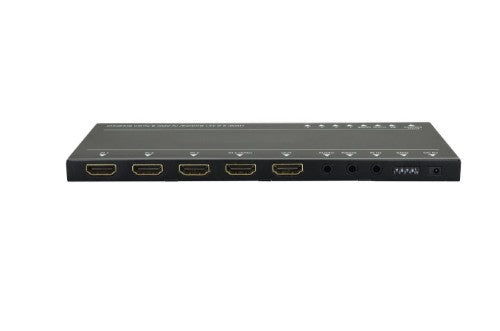

- HDMI switcher with 4 HDMI inputs and one HDMI out
- Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR
- 18Gbps high bandwidth
- Fully compliant with the HDMI 2.0 and HDCP2.2 specifications
- Supports audio return channel (ARC).
- Advanced EDID management: multiple preset and user defined allowed.
- Analogue audio de-embedder function
- Controllable via RS232 and IR
- Supports CEC

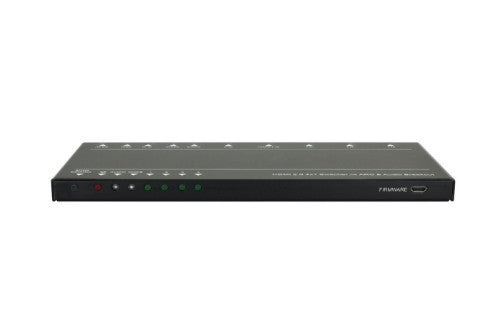

- Seven LEDs to indicate the current operating status and to assist troubleshooting an installation
- RS232 control and audio line out to active speakers
- Firmware upgrade by Micro-USB port
Description

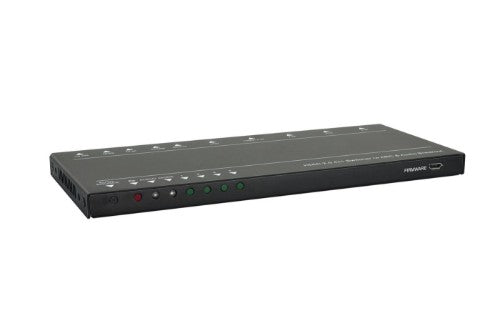

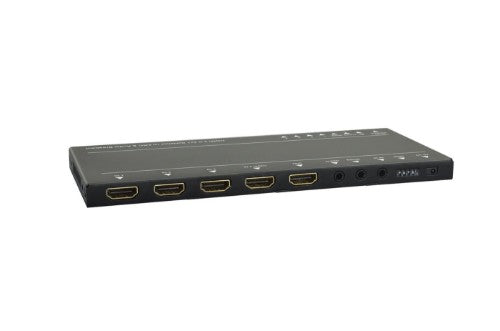

The VLSW141H is a high-performance 4x1 HDMI switch, designed to manage multiple HDMI sources with ease. It supports HDMI 18Gbps bandwidth, enabling resolutions up to 4K@60Hz with 4:4:4 chroma subsampling and HDR, ensuring exceptional video quality. The device is HDCP 2.2 compliant, ensuring compatibility with the latest content protection standards.Key features include smart EDID management for seamless integration with various display devices, support for Audio Return Channel (ARC), and audio de-embedding capabilities, allowing extraction of audio signals for separate processing. The switcher offers both automatic and manual switching modes, providing flexibility in source selection. Its ultra-slim design facilitates easy installation in diverse environments.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| RS-232 ports | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 5 |
| Number of HDMI outputs | 1 |
| HDMI in | 4 |
| Audio (L/R) out | 1 |
| S/PDIF out port | No |
| 3.5 mm (1/8-inch) out | Yes |
| Features | |
| Audio output channels | 2.0 channels |
| HD type | 4K Ultra HD |
| Remote control type | IR + RS232 |
| Product colour | Black |
| Plug and Play | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| LED indicators | Yes |
| HDCP | Yes |
| Bandwidth | 18 Gbit/s |
| Maximum frame rate | 60 fps |
| Audio formats supported | PCM |
| HDCP version | 2.2 |
| Consumer Electronics Control (CEC) support | Yes |
| Extended display identification data (EDID) | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 194 mm |
| Height | 12 mm |
| Depth | 81 mm |
| Weight | 180 g |
| Dimensions (WxDxH) | 194 x 81 x 12 mm |
| Package width | 239 mm |
| Package height | 124 mm |
| Package depth | 134 mm |
| Package weight | 564 g |
| Technical details | |
| Audio output channels | 2.0 channels |
| HD type | 4K Ultra HD |
| Remote control type | IR + RS232 |
| Operating temperature (T-T) | -10 - 55 °C |
| Width | 194 mm |
| Height | 12 mm |
| Depth | 81 mm |
| Product colour | Black |
| Video port type | HDMI |
| Plug and Play | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| LED indicators | Yes |
| HDMI version | 2.0 |
| HDMI ports quantity | 5 |
| HDCP | Yes |
| Remote control included | Yes |
| Bandwidth | 18 Gbit/s |
| Maximum frame rate | 60 fps |
| Audio formats supported | PCM |
| Audio support | Yes |
| Packaging data | |
| Package width | 239 mm |
| Package height | 124 mm |
| Package depth | 134 mm |
| Package weight | 564 g |
| Packaging content | |
| Mounting brackets included | Yes |
| Remote control included | Yes |
| AC adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
