Description

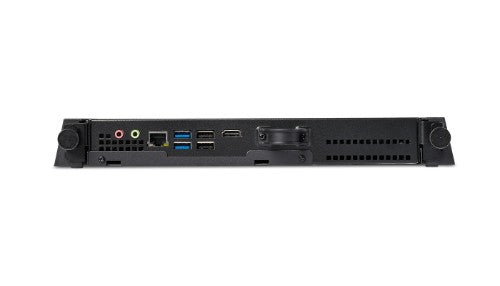

ECMG3, Intel Core i5-6500, 8 GB DDR4, 256 GB SSD, 2x USB 2.0 A, 2x USB 3.0 A, HDMI, 300x428x37 mm, Windows 10
Easy Installation

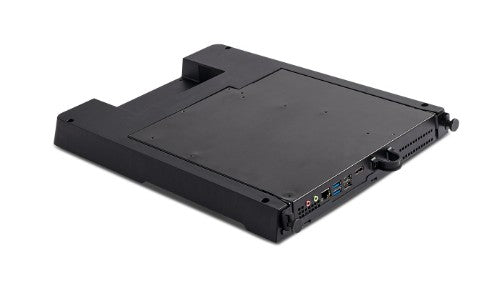

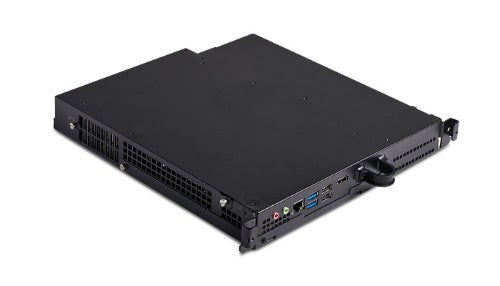

The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.
Maximize Value
Using Elo's computer modules instead of a separate external device can reduce complexity, provide added reliability, minimize mounting profile and reduce installation/maintenance costs.
Built-to-Last
The Elo Computer Modules deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 4 or 5-years. We design and build the complete solution, with touch integrated from the start.
Description
The Elo Computer Modules (ECM) featuring the Intel® Core™ 6th Generation CPUs and enhanced graphics engine are available with both Intel i3, i5 & i7 processors for Microsoft® Windows® 10, Windows 7 or no operating system. The commercial grade computer modules transform Elo's 3202L, 4202L, 4602L, 5502L, 5551L and 7001LT touchscreens into powerful touchcomputer platforms with compatibility to most content management servers, enabling customer engagement and immersive brand experiences by adding a new exciting dimension to traditional broadcast digital signage - the power of touch.Easy Installation
The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.
Maximize Value
Using Elo's computer modules instead of a separate external device can reduce complexity, provide added reliability, minimize mounting profile and reduce installation/maintenance costs.
Built-to-Last
The Elo Computer Modules deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 4 or 5-years. We design and build the complete solution, with touch integrated from the start.
Specifications
| Processor | |
|---|---|
| Processor generation | 6th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-6500 |
| Processor boost frequency | 3.6 GHz |
| Bus type | DMI3 |
| Conflict-Free processor | Yes |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2400 MHz |
| Storage | |
| Total storage capacity | 256 GB |
| Card reader integrated | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| SSD interface | Serial ATA |
| SSD capacity | 256 GB |
| Graphics | |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| On-board graphics card model | Intel® HD Graphics 530 |
| Network | |
| Wi-Fi | No |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Microphone in | Yes |
| Performance | |
| Motherboard chipset | Intel® H110 |
| Software | |
| Operating system installed | Windows 10 |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | Yes |
| Graphics & IMC lithography | 14 nm |
| Intel TSX-NI | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 90% |
| Certificates | |
| Certification | UL/cUL, CB, FCC, CE, AS, NZS, VCCI |
| Weight & dimensions | |
| Width | 300 mm |
| Depth | 428 mm |
| Height | 37 mm |
| Weight | 3.12 kg |
| Package width | 419 mm |
| Package depth | 535 mm |
| Package height | 130 mm |
| Package weight | 4.75 kg |
| Packaging content | |
| Manual | Yes |
