Description
HDMI Splitter and Switch 2x8
Key features include 4K-to-1080p downscaling on all outputs, allowing seamless integration with both 4K and 1080p displays. The splitter offers digital Toslink and analog L+R audio de-embedding for flexible audio extraction. Built-in signal equalization enhances transmission stability, while comprehensive EDID management and CEC support ensure optimal device communication.
Typical Applications:
Ideal for in-store setups to distribute signals to multiple screens or for shopfront TV demonstrations.
Key Features
- 8 HDMI outputs splitter and 2 sources selection
- Supports HDMI 4Kx2K@60Hz4:4:4
- Analog audio out and full 4K support
- Central control of volume and picture on/off
- Slim and robust design
Description

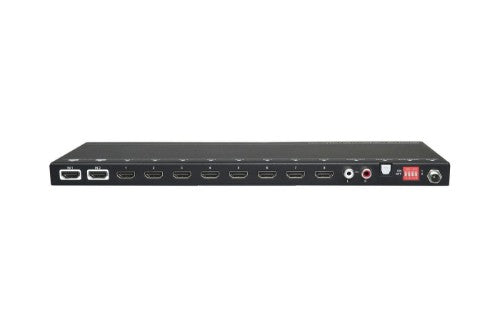

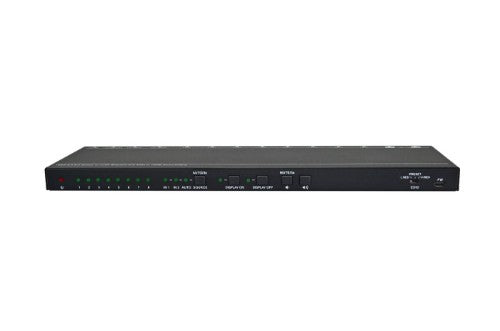

The VLHDMISP2X8 is a versatile 2x8 HDMI splitter designed to distribute two HDMI sources to up to eight outputs. It supports video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, HDR10, and Dolby Vision, ensuring exceptional video quality. With a bandwidth of 18Gbps and HDCP 2.2 compliance, it guarantees compatibility with the latest high-definition content.Key features include 4K-to-1080p downscaling on all outputs, allowing seamless integration with both 4K and 1080p displays. The splitter offers digital Toslink and analog L+R audio de-embedding for flexible audio extraction. Built-in signal equalization enhances transmission stability, while comprehensive EDID management and CEC support ensure optimal device communication.
Typical Applications:
Ideal for in-store setups to distribute signals to multiple screens or for shopfront TV demonstrations.
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 8 |
| Video port type | HDMI |
| Video out | 8x HDMI |
| HDMI version | 1.4/2.0 |
| DC-in jack | Yes |
| Ethernet LAN | No |
| Features | |
| LED indicators | Yes |
| Housing material | Metal |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Supported video modes | 3840p |
| Power LED | Yes |
| Plug and Play | Yes |
| Easy to install | Yes |
| Product colour | Black |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Number of displays supported | 8 |
| Network | |
| Ethernet LAN | No |
| Power | |
| AC input voltage | 110 - 230 V |
| Weight & dimensions | |
| Weight | 900 g |
| Dimensions (WxDxH) | 324 x 100 x 20 mm |
| Width | 324 mm |
| Depth | 100 mm |
| Height | 20 mm |
| Package weight | 1.16 kg |
| Package depth | 160 mm |
| Package width | 378 mm |
| Package height | 103 mm |
| Packaging data | |
| Package weight | 1.16 kg |
| Package depth | 160 mm |
| Package width | 378 mm |
| Package height | 103 mm |
| Packaging content | |
| AC adapter included | Yes |
| User guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Video | |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Supported video modes | 3840p |
| 3D | Yes |
| Colour | |
| Product colour | Black |
| Indication | |
| LED indicators | Yes |
| Power LED | Yes |
| Technical details | |
| Maximum cable length | 100 m |
| Housing material | Metal |
| Cascadable | Yes |
| Package width | 378 mm |
| Package height | 103 mm |
| Video out | 8x HDMI |
| Plug and Play | Yes |
| HDMI version | 1.4/2.0 |
| Easy to install | Yes |
| Connector type | HDMI |
