Description
5 GHz, 450+ Mbps, 10/100/1000 Ethernet Port, 16 dBi
The LiteAP ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.
airMAX ac Sector Coverage
The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.
GPS Synchronization
LiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
Now with airOS8
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Lightweight and Sleek Design
The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.

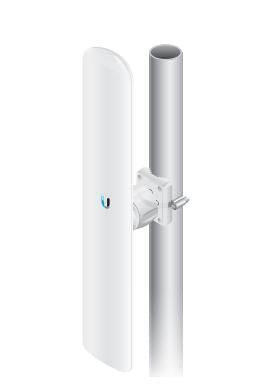

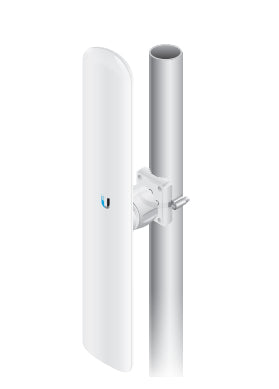

Installation Flexibility
Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
Description
2x2 MIMO airMAX ac Sector APThe LiteAP ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.
airMAX ac Sector Coverage
The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.
GPS Synchronization
LiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
Now with airOS8
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Lightweight and Sleek Design
The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.
Installation Flexibility
Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
Specifications
| Performance | |
|---|---|
| Bandwidth note | 5150 - 5875 MHz |
| Built-in processor | Yes |
| Processor model | Atheros MIPS 74Kc |
| Processor frequency | 533 MHz |
| Internal memory | 64 MB |
| Antenna gain level (max) | 16 dBi |
| Frequency band | 5 GHz |
| Cabling technology | 10/100/1000Base-T(X) |
| Features | |
| Antenna gain level (max) | 16 dBi |
| Frequency band | 5 GHz |
| Antenna type | MIMO directional antenna |
| Mounting | Pole |
| Product colour | White |
| Certification | FCC, IC, CE |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 7 W |
| Technical details | |
| Antenna gain level (max) | 16 dBi |
| Frequency band | 5 GHz |
| Antenna type | MIMO directional antenna |
| Cables included | AC |
| Mounting | Pole |
| Harmonized System (HS) code | 85177100 |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | White |
| Certificates | |
| Certification | FCC, IC, CE |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 420 g |
| Width | 78.7 mm |
| Depth | 54.4 mm |
| Height | 452.3 mm |

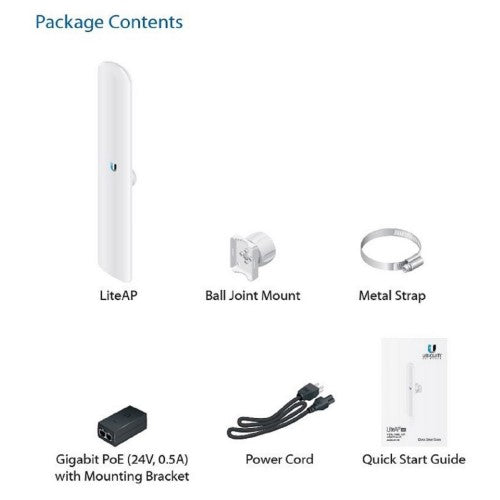

| Packaging content | |
| Quick installation guide | Yes |
| Mounting kit | Yes |
| Cables included | AC |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
