5 x 10/100/1000 RJ-45, 10 Gbps, 1K, 71.4g
Key Features
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Supports 4K MAC address auto-learning and auto-aging
- Quick and easy installation
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- Package Contents
Description

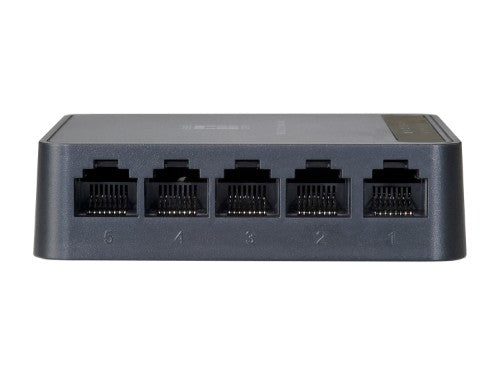

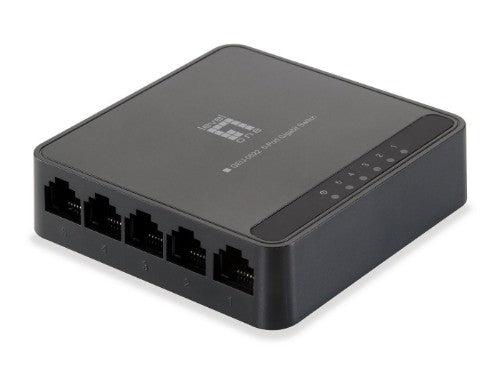

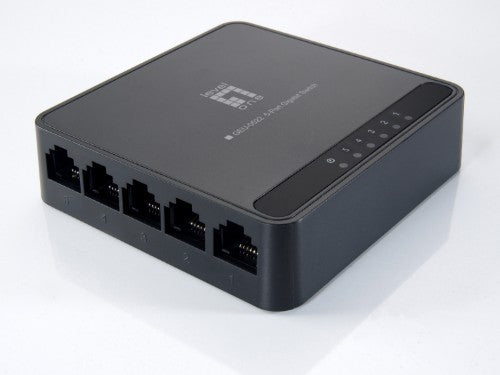

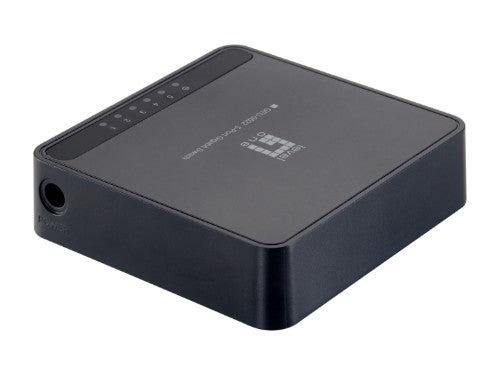

The LevelOne GEU-0522 is a wire-speed, non-blocking networking device that provides 5 ports 10/100/1000Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.
Specifications
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| Network |
|---|
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| Full duplex |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Data transmission |
|---|
| Packet forwarding rate (100 Mbps) |
148810 pps |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Packet forwarding rate (1 Gbps) |
1488100 pps |
| Jumbo frames |
9000 |
| MAC address table |
1000 entries |
| Switching capacity |
10 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Design |
|---|
| Product colour |
Black |
| Stackable |
No |
| LED indicators |
Activity, Link, Power |
| Country of origin |
China |
| Certification |
CE, FCC |
| Performance |
|---|
| Buffer size |
64 KB |
| Stackable |
No |
| Auto-negotiation |
Yes |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Input voltage |
5 V |
| Input current |
0.6 A |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
86 mm |
| Depth |
23 mm |
| Height |
89 mm |
| Weight |
71.4 g |
| Packaging content |
|---|
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Packaging data |
|---|
| AC adapter included |
Yes |
| Package type |
Box |
| Package width |
95 mm |
| Package depth |
82 mm |
| Package height |
98 mm |
| Package weight |
184 g |
| Quick start guide |
Yes |
| Technical details |
|---|
| Product colour |
Black |
| Stackable |
No |
| Certificates |
|---|
| Certification |
CE, FCC |
| Indication |
|---|
| LED indicators |
Activity, Link, Power |
| Other features |
|---|
| Input voltage |
5 V |
| Country of origin |
China |
| Logistics data |
|---|
| Country of origin |
China |
| Master (outer) case width |
495 mm |
| Master (outer) case length |
191 mm |
| Master (outer) case height |
516 mm |
| Master (outer) case gross weight |
10.2 kg |
| Products per master (outer) case |
50 pc(s) |
| Harmonized System (HS) code |
85176990 |
