Description

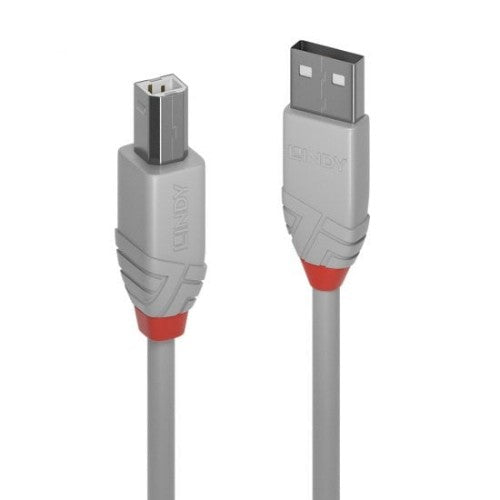

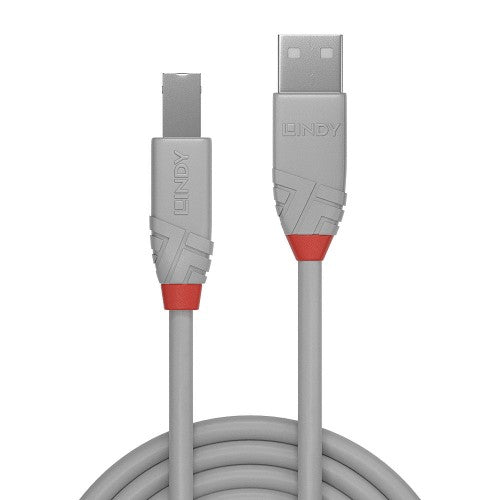

1m USB 2.0 Type A to B Cable, Anthra Line, Grey
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
This product features a grey finish effect on the cable.
Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 5m.
Key Features
- Professional choice USB 2.0 Type A to B, grey, cable for commercial and high performance AV and IT installations
- Supports data transfer speeds up to 480Mbps
- Robust PVC housing, nickel connectors and gold plated contactsandnbsp;
- Double shielded cable with grey finish, corrosion resistant tinned copper conductors
- USB 2.0, 480Mbps; 10 year warranty
Description
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B, grey, cables are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
This product features a grey finish effect on the cable.
Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 5m.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/28 |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB B |
| Cable length | 1 m |
| Connector contacts plating | Gold |
| Maximum data transfer rate | 480 Mbit/s |
| Product colour | Grey |
| Certification | RoHS, REACH, UL |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Conductor material | Tinned copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Contact material | Copper |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Connector housing material | Polyvinyl chloride (PVC) |
| Nominal attenuation | 5.8db/km |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable diameter | 4.4 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 4.4 mm |
| Cable length | 1 m |
| Bend radius (min) | 1.6 cm |
| Connector 1 dimensions (WxDxH) | 15.5 x 35 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 11.8 x 35 x 10.2 mm |
| Package type | Polybag |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 80 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Ports & interfaces | |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB B |
| Connector contacts plating | Gold |
| Data transmission | |
| Maximum data transfer rate | 480 Mbit/s |
| Technical details | |
| Product colour | Grey |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | RoHS, REACH, UL |
| Other features | |
| Package type | Polybag |
| Product colour | Grey |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 80 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
